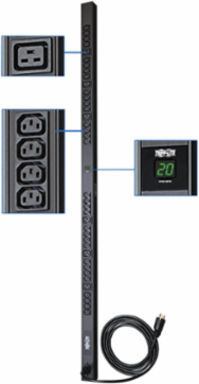

Tripp Lite PDUMV20HV 3.2-3.8kW Single-Phase Metered PDU, 200-240V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10ft Cord, 0U Vertical
Tripp Lite PDUMV20HV 3.2-3.8kW Single-Phase Metered PDU, 200-240V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10ft Cord, 0U Vertical
- MPN: PDUMV20HV
- UPC: 037332139344
- PPN: TRP-PDUMV20HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$627.77/ EA
Description
3.2-3.8kW Single-Phase Metered PDU, 200-240V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10ft Cord, 0U Vertical
Features
- Metered single phase 16/20A 200-240V 0U 63.75in / 162cm vertical rackmount PDU
- Two-digit meter reports output current in amps
- 10ft / 3m detachable input cable with NEMA L6-20P plug
- C20 inlet accepts a variety of 16A international cordsets
- 38 output receptacles (6 C19, 32 C13)
- Ready for immediate toolless 0U installation
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950)
Physical
- Form Factors Supported
- 0u vertical installation in equipment racks, plus under-counter and wallmount
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 9.50
- Unit Weight (lbs.)
- 5.20
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)5.00 x 3.50 x 65.50
Unit Dimensions (hwd / in.)63.75 x 2.25 x 3.75
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital meter reports PDU output current in amps
Switchesn/a
Input
- PDU Input Voltage
- 200; 208; 220; 230; 240
- Maximum Input Amps
- 20
- Input Connection Type
- L6-20P detachable cordset, C20 inlet available
- Input Phase
- Single-Phase
Recommended Electrical Service20A 208/240V; 16A 230V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
PDU Plug TypeNEMA L6-20P; IEC-320 C20
Input Cord Length (ft.)10
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (32) C13; (6) C19
- Overload Protection
- n/a
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage200; 208; 220; 230; 240
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity0-95% non-condensing
Overview
- UPC Code
- 037332139344
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
