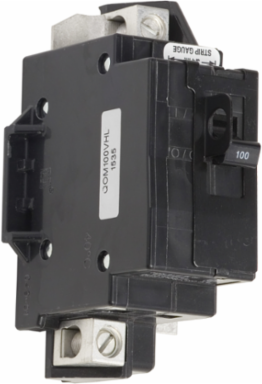

Square D QOM100VHL QO Main Breaker 125A 2 Pole 120/240V 22kA Bolt-On Mount
- MPN: QOM100VHL
- UPC: 785901114895
- PPN: SCH-QOM100VHL
CAD
$161.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 110A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 100 A
- Interrupt Rating
- 22 kA 120/240 V AC 50/60 Hz
- Number of Phases
- 1 phase
- Circuit Breaker Application
- Primary Main Breaker
- Electrical Connection
- Lugs
- Tightening Torque
- 6 N.m
- Width
- 127 mm
- Net Weight
- 0.603 kg
- Product Destination
- QO load center
- Product Certifications
- UL Listed, CSA
- Mercury Free
- Yes
- Country of Origin
- Mexico
Voltage Rating120/240 V AC
Number of Poles2P
Circuit Breaker TypeStandard
Mounting TypeBolt-on
Wire SizeAWG 4 to AWG 2/0 copper or aluminum
Height129 mm
Depth88 mm
Device Short NameQOM1
Range Of ProductQO
Ambient Air Temperature For Operation40 °C
RoHS ComplianceCompliant with Exemptions
