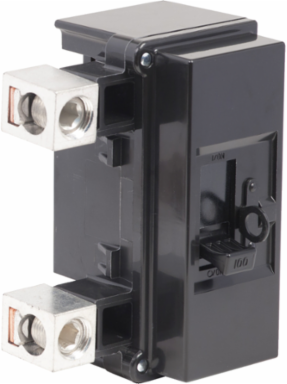

Square D QOM2100VHL QO 100A 2 Pole Circuit Breaker, 22kA, Bolt-On Mount, 120/240VAC
Square D QOM2100VHL QO 100A 2 Pole Circuit Breaker, 22kA, Bolt-On Mount, 120/240VAC
- MPN: QOM2100VHL
- UPC: 785901372615
- PPN: SCH-QOM2100VHL
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$552.42/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.
Specifications
- Rated Current
- 100 A
- Voltage
- 120/240 V AC
- Number of Phases
- 1 phase
- Circuit Breaker Type
- Standard
- Frame Size
- QOM2
- Tightening Torque
- 6 N.m (53.10 lbf.in)
- Width
- 129 mm (5.08 in)
- Net Weight
- 1.18 kg (2.60 lb)
- Ambient Air Temperature for Operation
- 40 C (104 F)
- Mercury Free
- Yes
- Country of Origin
- Mexico
- Product Or Component Type
- Circuit Breaker
Interrupt Rating22 kA 120/240 V AC 50/60 Hz
Number of Poles2P
Mounting TypeBolt-on
Electrical ConnectionLugs
Wire SizeAWG 4...250 kcmil copper or aluminum
Height142 mm (5.59 in)
Depth91 mm (3.58 in)
Load Center TypeMain Breaker
RoHSCompliant with Exemptions
Product CertificationsUL Listed, CSA
Range of ProductQO
