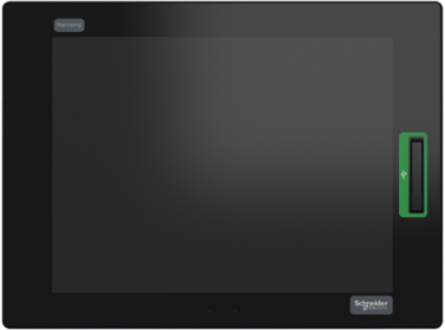

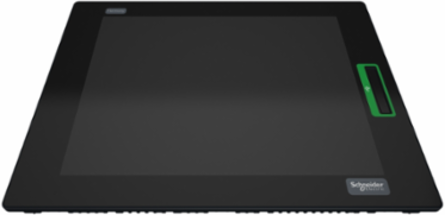

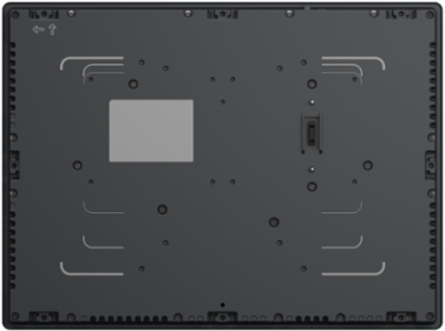

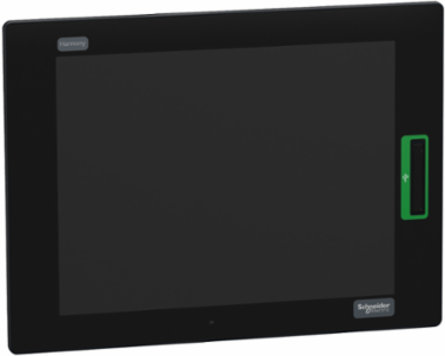

Schneider Electric HMIDM6700TM Harmony P6 15 Inch Touchscreen Display, XGA, 16M Colors, IP66/IP67
- MPN: HMIDM6700TM
- PPN: SCH-HMIDM6700TM
CAD
$1792.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony P6 15 Inch Touchscreen Display, XGA, 16M Colors, IP66/IP67
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Physical Attributes
- Display Size
- 15 inch
Display Color16 million colours
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Shock Resistance
- 147 m/s² IEC 61131-2, 147 m/s² 3 shocks in each direction X, Y and Z
- Carbon Footprint Of The Distribution Phase [A4]
- 1.3158811720698254, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.5679238154613466, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 657 kg CO2 eq., 656.6866666666666
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- HMI - Industrial PC
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2010022EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2513
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Aspect Ratio
- 4:3
- Pixel Resolution
- 1024 x 768
- Product Or Component Type
- touch panel screen
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2010022EN
- Pep Verification Date
- 2023-09-26
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 39
- Width Nominal
- 397 mm
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 4.37 kg
- Take-back
- No
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 9430
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 19228
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyRCM, KC, UKCADNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)ATEX zone 22 dust (DC model, front USB cover must be locked with screw), ATEX zone 2 (DC model, front USB cover must be locked with screw)cULus Class 1 Division 2 (without DIO option), IECEx zone 2 (DC model, front USB cover must be locked with screw), IECEx zone 22 (DC model, front USB cover must be locked with screw)
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.440143017456359
Carbon Footprint Of The Manufacturing Phase [A1 To A3]211 kg CO2 eq., 211.00317955112217
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Inrush Current30 A
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony P6
Software Versionv5.9.4
Total Lifecycle Carbon Footprint874 kg CO2 eq.
Display Color16 million colours
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide 19”W TFT Smart Display during 10 years and maximum use rate at 24.0W, based on below function:& 10- 19-inch Wide Touchscreen panel.& 10- Status LED
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh1401.6
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US

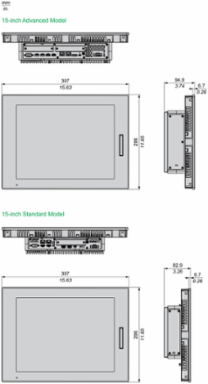

Height Nominal296 mm
Cut-out Dimensions383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1069.6
Customs Code8471410150
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 874.0137942227763
- Circularity Profile
- ENVEOLI2010022EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2010022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2010022EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-09-26
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC001413
ETIM 9EC001413
