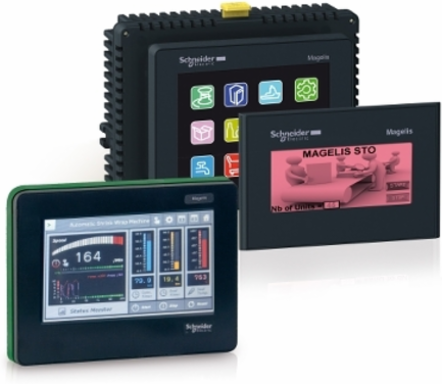

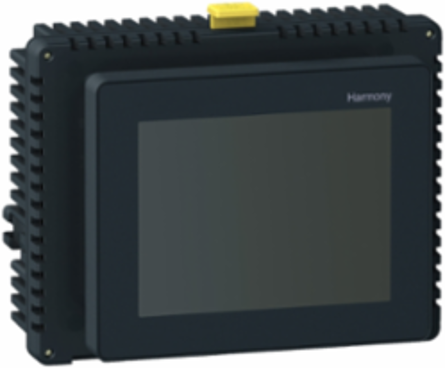

Schneider Electric HMISTU655W colour touch panel screen, Harmony STO & STU, 3.5inch wide, without Schneider logo

  • MPN: HMISTU655W
  • PPN: SCH-HMISTU655W
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $777.09

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, United States
    Depth55.3 mm

    Physical Attributes

    Display Size
    3.5 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    1 USB 2.0 type mini B, 1 USB 2.0 type ACOM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)power supply - removable screw terminal block1 Ethernet - RJ45

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Character Font
    Korean, Japanese (ANK, Kanji), ASCII, Taiwanese (traditional Chinese), Chinese (simplified Chinese)
    Marking
    without Schneider logo, CE
    Certificate Agency
    C-tick, Marine, UL class 1 Div2 T4A ou T5, cULus, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.2 kg CO2 eq., 0.16928944360902257
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    79 kg CO2 eq., 79.47443458646617
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    4
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Display Resolution
    320 x 240 pixels QVGA
    Enclosure Material
    PC/PBT
    Immunity To Microbreaks
    10 ms
    Memory Description
    application memory 16 MBback up of data 64 kB
    Power Consumption In W
    6.5 W
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Range Of Product
    Harmony STO & STU
    Resistance To Electromagnetic Fields
    10 V/m IEC 61000-4-3
    Shock Resistance
    15 gn 11 msIEC 60068-2-27
    Software Package
    Vijeo Designer
    Supply
    external source
    Sustainable Packaging
    No
    Touch Panel
    analogue
    Display Color
    65536 colours
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential In %
    58
    Width Nominal
    118 mm
    F-gas Free
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    534.000 g
    Take-back
    No
    Customs Code
    8537109170
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsModbus TCP/IP, Modbus, Uni-TE, third party protocols
    Vibration Resistance+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]0.0726396992481203, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.004745455037593985, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]438 kg CO2 eq., 437.92047619047617
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2101003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Brightness16 levels
    Display TypeQVGA TFT colour touchscreen
    Fixing ModeØ 22 mm hole
    Inrush Current30 A
    Number Of Pageslimited by internal memory capacity
    Processor NameARM926EJ-S
    Product Or Component Typetouch panel screen
    Realtime Clockaccess to the PLC real-time clock
    ReturnabilityNo
    Software DesignationVijeo Designer
    Software VersionEIME v5.8.1
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint518 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2101003EN
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh569.4
    Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Height Nominal98.15 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -20-60 °C, -20-60 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    517.6415853748371
    Circularity Profile
    ENVEOLI2101003EN
    Eu Rohs Directive
    Compliant By Exemption
    Ip Degree Of Protection
    IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2101003EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP2101003EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel indoor use)
    Packaging Without Single Use PlasticNo
    Relative Humidity0-85 % without condensation
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    touch panel screen
    Range Of ProductHarmony STO & STU

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLEUser replaceable

    Accessories
