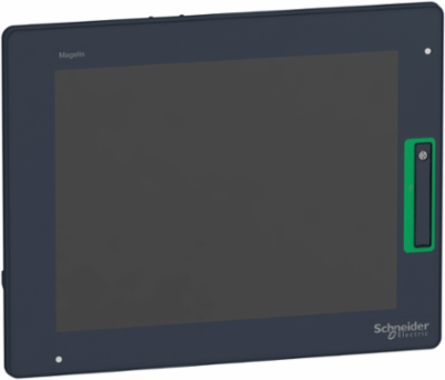

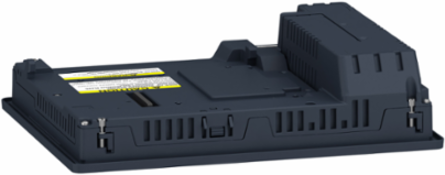

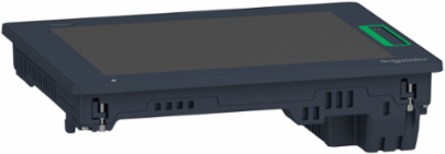

Schneider Electric HMIDT542 Harmony GTU HMI Touchscreen Display 10.4 Inch Color TFT, 800x600, IP66/IP67

  • MPN: HMIDT542
  • PPN: SCH-HMIDT542
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3823.20

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10.4" color TFT LCD display with 800 x 600 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, Indonesia, United States
    Depth67 mm

    Physical Attributes

    Display Size
    10.4 inch
    Display Color16 million colours

    Complementary Attributes

    Integrated Connection Type
    USB 2.0 type A, USB 2.0 type mini B

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Vibration Resistance
    3.5 mm constant amplitude 5-9 Hz) IEC 61131-2, 9.8 m/s² 9-150 Hz) IEC 61131-2
    Carbon Footprint Of The Distribution Phase [A4]
    0.401244, 0.4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.6 kg CO2 eq., 0.6161399999999999
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    616 kg CO2 eq., 615.6409090909091
    Local Publishable Date
    2026-03-25
    Stocking Flag
    Y
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1402016EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2514
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Aspect Ratio
    4:3
    Display Type
    colour TFT LCD
    Function Available
    brightness sensor
    Pixel Resolution
    800 x 600
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony GTU
    Shock Resistance
    147 m/s²IEC 61131-2
    Supply Voltage Limits
    10.8-28.8 V
    Terminal Type
    touchscreen display
    Touch Panel
    multi touch analogue resistive
    Type Of Cooling
    natural convection
    Display Color
    16 million colours
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime, In Kwh
    1314
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; US
    Height Nominal
    214.5 mm
    [Us] Rated Supply Voltage
    12...24 V DC power supply
    F-gas Free
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    3.729 kg
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    153.312
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
    -16.2576
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -230.004
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
    4.2381
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    167.934
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    129.558
    Materials For Recycling (Kg) End Of Life [C1-c4]
    1.4739
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -32.7012
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    12.156
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.0564
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
    6.8724
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -241.194
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -11.1876
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    12.156
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    2062.68
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -229.95
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    6.6846
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    23.4924
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Certificate AgencycULus, CE, KC, RCM, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2.9424599999999996, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]154 kg CO2 eq., 153.91199999999998
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution800 x 600 pixels SVGA
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Inrush Current30 A
    Power Consumption In W15 W
    Product Or Component Typeflat screen
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint774 kg CO2 eq.
    Touchscreen Resolution1024 x 1024
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402016EN
    Pep Verification Date2024-03-13
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential, In %55
    Width Nominal272.5 mm
    Cut-out Dimensions259 (+ 1/- 0) x 201 (+ 1/- 0) mm
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-15.837
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]122.544
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]2176.14
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-1031.34
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]3.6699
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1002.75
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]44.1486
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]2.2125
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.156
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]2105.04
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]122.55
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]30.177
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle12.156
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0564
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]122.544
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.6846
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-6.0912

    Environment Attributes Main

    Ip Degree Of Protection
    front panel IP66, front panel IP67
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-60 °C IEC 61131-2
    Circularity Profile
    ENVEOLI1402016EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 4X front panel
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1402016EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint773.512753090909
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402016EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-03-13
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    flat screen
    Range Of ProductHarmony GTU
