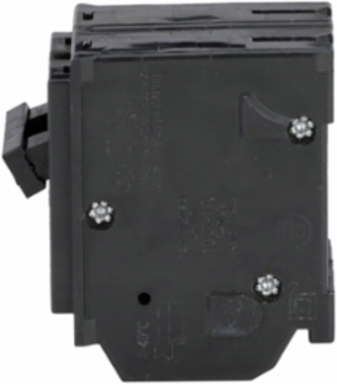

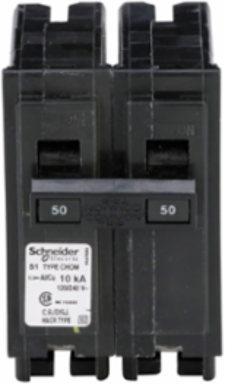

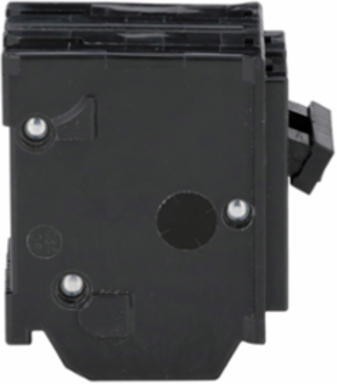

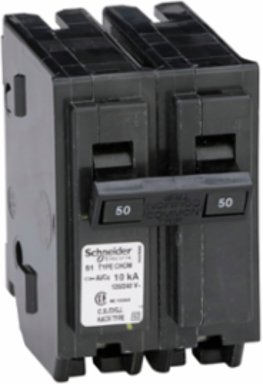

Schneider Electric CHOM250 Miniature Circuit Breaker, 50A, 2 Pole, 120/240V AC, 10kA AIR, Plug-On
- MPN: CHOM250
- UPC: 785901648048
- PPN: SCH-CHOM250
CAD
$84.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50 A at 120/240 VAC. CHOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- The Schneider CHOM250 is an authentic, CSA-certified Homeline (CHOM) circuit breaker designed specifically for the Canadian residential market. As the OEM standard for Schneider Homeline panels, it ensures a perfect mechanical "plug-on" fit and optimal electrical connectivity, eliminating the safety risks and warranty voids associated with using non-genuine or cross-brand alternatives.
- Rated at 50 Amps and 120/240V, this two-pole breaker is the heavy-duty solution for high-demand household appliances. It is the standard requirement for electric stoves, large central air conditioning units, and Level 2 Electric Vehicle (EV) charging stations, providing synchronized protection across both "hot" legs of the circuit.

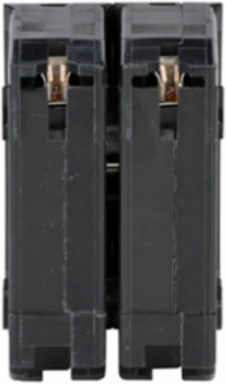

- The CHOM250 features a user-friendly plug-on mounting system, allowing it to snap securely onto the panel's bus bar without the need for mounting screws or specialized tools. This design ensures a high-pressure, low-resistance connection that remains stable over years of use, while the robust box-style terminals accommodate large-gauge copper or aluminum conductors (typically #8 to #2 AWG).
- This breaker utilizes a dual-stage thermal-magnetic protection system. The thermal element guards against slow, sustained overloads by reacting to heat buildup in the wires, while the magnetic element provides instantaneous protection against high-energy short circuits. This ensures the power is cut in milliseconds during a fault, protecting your home's infrastructure and your family's safety.
- Occupying two 1-inch spaces (total 2-inch width), the CHOM250 is a full-size breaker that provides superior heat dissipation compared to "tandem" or "twin" breakers. This extra surface area is critical for high-amperage 50A circuits, as it helps the breaker run cooler and prevents nuisance tripping caused by ambient heat inside a crowded electrical panel.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current50 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 8...AWG 2 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
