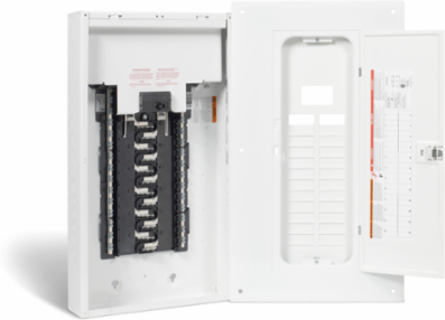

Schneider Electric CHOM2448M60GC Loadcentre, Homeline, 1 phase, 12 spaces, 24 circuits, 60A main breakers, Type 1, gnd bar, combo cover
Schneider Electric CHOM2448M60GC Loadcentre, Homeline, 1 phase, 12 spaces, 24 circuits, 60A main breakers, Type 1, gnd bar, combo cover
- MPN: CHOM2448M60GC
- PPN: SCH-CHOM2448M60GC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$173.34/ EA
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a main circuit breaker that is rated at 60A single phase. This CHOM load center provides a 22kA breaking capacity. This system provides 24 spaces in a NEMA 1 enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Specifications
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 24
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 48
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces24
Device Compositiongrounding bar included (not installed)
Box Number8
Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current60 A
[Ue] Rated Operational Voltage120/240 V AC
