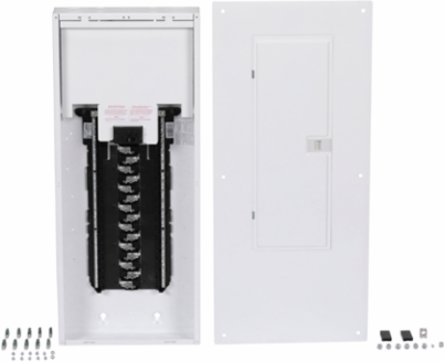

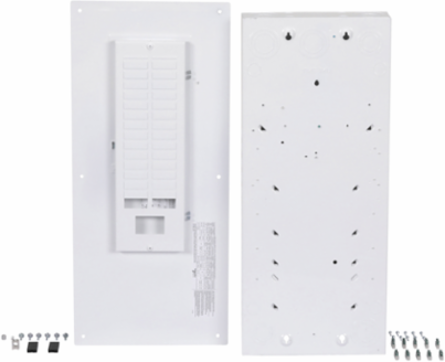

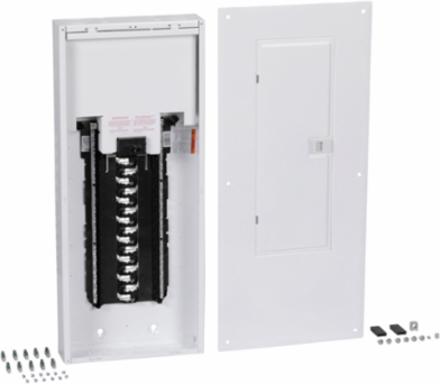

Schneider Electric CHOM3060M125GC Homeline Load Centre, 30 Spaces, 60 Circuits, 125A, NEMA 1
- MPN: CHOM3060M125GC
- UPC: 785901677314
- PPN: SCH-CHOM3060M125GC
CAD
$245.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 125 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 33.78 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- Providing an expansive 30 spaces with the capability to support up to 60 circuits using Homeline tandem breakers, this 125-amp main breaker load center offers incredible wiring flexibility. This high-density design eliminates the immediate need for costly subpanels, allowing you to easily add dedicated circuits for future basement renovations, home offices, or major appliances without running out of physical room in the box.
- Built with a robust, one-piece tin-plated aluminum busbar, this single-phase electrical panel ensures highly efficient and stable 120/240V power distribution throughout your property. The fully shielded, tin-plated design actively resists long-term corrosion and oxidation, maintaining superior conductivity over decades while strictly adhering to CSA certification standards for Canadian residential installations.
- Engineered with a versatile NEMA 1 indoor enclosure and a crisp white combination flush/surface cover, this panel seamlessly adapts to your specific framing environment. Whether you are cleanly recessing it between standard 16-inch studs for a flush aesthetic in a finished hallway or surface-mounting it in a utility garage, the included cover and built-in neutral/ground configurations keep your final installation tidy and professional.
- Factory-equipped with a 125A main breaker boasting a 22 kA short-circuit current rating (SCCR), this load center provides exceptional, code-compliant defense against high-fault electrical anomalies. By rapidly severing power during massive surges or dead shorts, it actively protects your valuable home electronics, prevents catastrophic fire hazards, and ensures your service upgrade passes rigorous local building inspections with ease.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current125 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 30
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 60
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces30
Device Compositiongrounding bar included (not installed)
Box Number10
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
