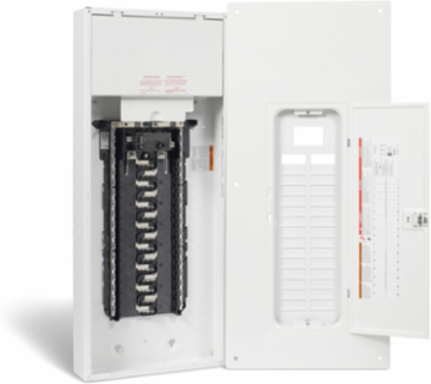

Schneider Electric CHOM3060M100GC Homeline Load Centre, 30 Spaces, 60 Circuits, 100A, NEMA 1
- MPN: CHOM3060M100GC
- UPC: 785901677253
- PPN: SCH-CHOM3060M100GC
CAD
$166.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 33.78 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- The CHOM3060M100GC is a "30-Space, 60-Circuit" load center. This configuration provides 30 physical slots for standard breakers, which can be expanded to accommodate up to 60 circuits using tandem breakers. It offers the perfect balance of footprint and circuit density for small-to-medium residential projects or basement finishing.
- This panel features a factory-installed 100-Amp main breaker. While 200A is common for new construction, a 100A service remains the standard for many urban dwellings, semi-detached homes, and secondary suites, providing sufficient power for standard appliance loads and modern lighting.
- The "GC" suffix denotes a Canadian Value Pack. This all-in-one bundle includes the 100A main breaker, a combination flush/surface cover, and a selection of branch breakers. Buying this kit provides significant savings over purchasing the components separately and ensures out-of-the-box compatibility for the installer.
- Built with a solid copper bus bar, this Homeline panel provides superior conductivity and runs cooler than aluminum alternatives. The copper construction is highly resistant to corrosion and thermal expansion, reducing the likelihood of loose connections and ensuring a longer lifecycle for your home's electrical heart.
- The included Combination Cover is designed for both flush-mount (inside a finished wall) and surface-mount (directly on a basement or utility room wall) applications. This versatility, combined with "tangential" knockouts that eliminate the need for complex conduit bends, allows for a faster and more professional installation.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 30
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 60
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces30
Device Compositiongrounding bar included (not installed)
Box Number10
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
