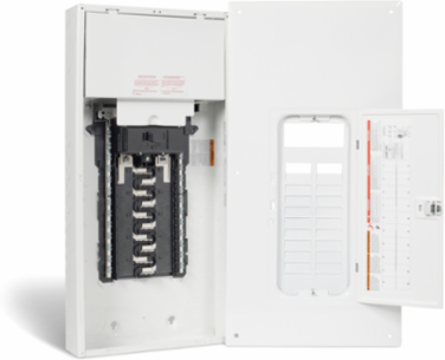

Schneider Electric CHOM2040M200GC Homeline Loadcentre 200A Main Breaker, 20 Spaces, NEMA 1 Enclosure
- MPN: CHOM2040M200GC
- UPC: 785901677345
- PPN: SCH-CHOM2040M200GC
CAD
$362.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 200 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 29.86 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- Engineered with tandem-breaker capabilities, this load center allows you to safely double up circuits in a single slot, maximizing your wiring potential without requiring a massive, space-consuming enclosure. This gives homeowners and contractors the flexible capacity needed to easily add high-draw upgrades like EV chargers, central air conditioning, or basement renovations later on.
- Pre-installed with a heavy-duty 200A main breaker, this Homeline panel provides the robust power distribution strictly required for modern, power-hungry residential homes. Skipping the hassle of sourcing and manually torquing a separate main breaker saves electricians valuable time on the job site while ensuring a highly reliable, factory-tested connection to your primary utility service.
- Shipped as a fully comprehensive kit, this load center includes a factory-installed ground bar and a versatile combination surface/flush mount cover right out of the box. This all-in-one approach eliminates the frustration of mid-project hardware store runs, allowing for an immediate, professional finish whether you are mounting the box directly to basement concrete or flush within finished drywall.
- Exclusively designed to accept standard Schneider Electric Homeline (CHOM) plug-on circuit breakers, this residential panel guarantees a secure, perfectly matched electrical connection. Fully CSA approved to meet stringent Canadian Electrical Code (CEC) standards, it gives local inspectors complete confidence in your wiring project while protecting your property and family from dangerous electrical faults.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current200 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 20
- Electrical Connection
- lugs
- Awg Gauge
- AWG 4...250 kcmil aluminum/copper
- Number Of Circuits
- 40
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces20
Device Compositiongrounding bar included (not installed)
Box Number9
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
