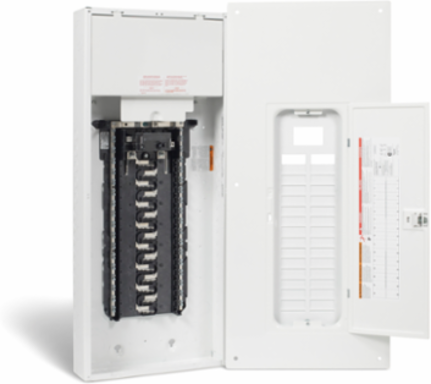

Schneider Electric CHOM3060M200GC Homeline Load Centre, 30 Spaces, 60 Circuits, 200A, NEMA 1
- MPN: CHOM3060M200GC
- UPC: 785901677352
- PPN: SCH-CHOM3060M200GC
CAD
$340.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 200 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This HOM Homeline load center has a height of 33.78 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- The CHOM3060M200GC is a "30-Space, 60-Circuit" load center. This configuration provides 30 physical slots for breakers, which can be expanded to 60 circuits using tandem breakers. It is the gold standard for new residential construction, providing ample room for luxury upgrades like EV chargers, heat pumps, and hot tubs.
- This panel comes equipped with a factory-installed 200-Amp main breaker. This is the standard for modern Canadian homes, ensuring you have the capacity to run high-draw appliances (stoves, dryers, AC) simultaneously without the risk of tripping the main service disconnect.
- The "GC" suffix denotes a Canadian Value Pack. This bundle includes the 200A load center, a combination flush/surface cover, and a curated selection of branch breakers (typically a mix of 15A and 20A single-pole breakers). It offers significant cost savings over buying components individually and ensures you have everything needed to start the rough-in.
- Featuring a solid copper bus bar, this Homeline panel offers the best electrical conductivity and thermal performance available. Copper stays cooler under load and is more resistant to corrosion than aluminum, providing a longer lifespan and more reliable connections for your home's electrical system.
- The included Combination Cover allows for both flush mounting (inside a finished drywall wall) and surface mounting (on a basement or garage wall). The "tangential" knockouts on the box simplify conduit alignment, making the installation faster and much cleaner for the electrician.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current200 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 30
- Electrical Connection
- lugs
- Awg Gauge
- AWG 4...250 kcmil aluminum/copper
- Number Of Circuits
- 60
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces30
Device Compositiongrounding bar included (not installed)
Box Number10
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
