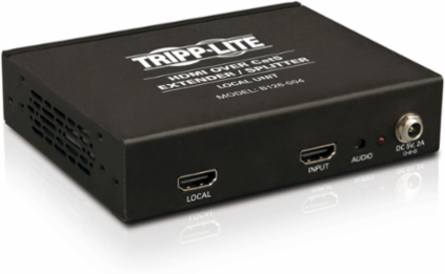

Tripp Lite B126-004 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft., TAA
Tripp Lite B126-004 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft., TAA
- MPN: B126-004
- UPC: 037332157515
- PPN: TRP-B126-004
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$602.54/ EA
Description

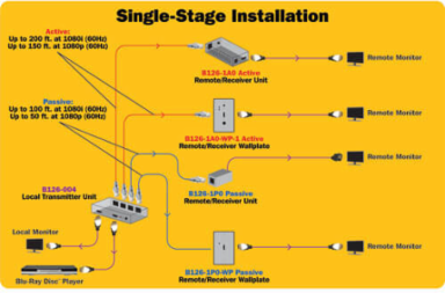

Works with Tripp Lite’s B126-Series receivers to split a single HDMI signal into five separate signals (one local and four remote), each on one cable, to five projectors, monitors or televisions in a chain.
Features
- Perfect for digital signs, trade shows and classrooms

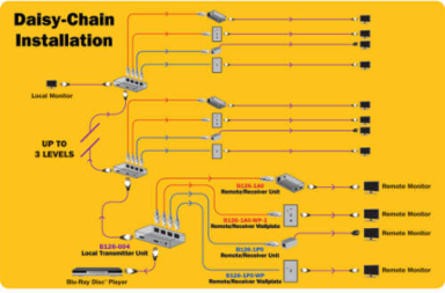

- Can daisy-chain up to 3 units to extend signal to 13 monitors
- Works with all operating systems and HDMI video sources
- Supports stereo and 7.1-channel surround sound audio

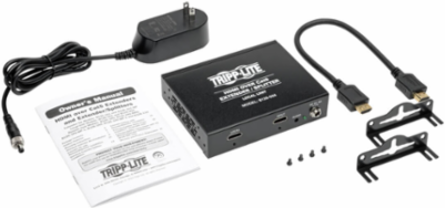

- Includes an HDMI cable with latching connectors for a more secure connection
- Plug and play—no software or drivers to install
- 1-year limited warranty
Specifications
Features & Specifications
- Max Supported Video Resolution
- 1080p @60Hz
- HDCP Specification
- 1.4
- Driver Required
- No
- Max Supported Color Depth
- 24-bit True Color
- Technology
- HDMI
HDMI Specification1.4
Audio Specification7.1 Channel Surround Sound (Multi-Channel or PCM)
Recommended Category CableCat5/Cat5e/Cat6 Cables
3D Video SupportedYes
Certifications
- Certifications
- Tested to FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 16ft (5m)
Max Number of Ports (Entire Chain)12
Connections
- Ports
- 4
- Side B - Connector 1

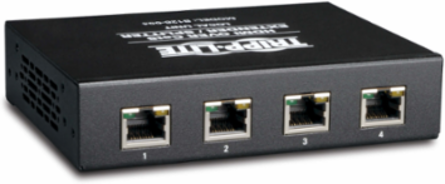

- (4) RJ45 (FEMALE)
Side A - Connector 1(2) HDMI (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Material of Construction
- SECC
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 1.70
- Unit Packaging Type
- Box
Included Mounting AccessoriesYes
Optional Mounting Accessory NotesUp to three B126-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004 -RB Extender/Splitter 19in rackmount bracket
Shipping Dimensions (hwd / in.)2.00 x 8.30 x 6.40
Unit Dimensions (hwd / in.)1.125 x 5 x 4
Unit Weight (lbs.)0.2
User Interface, Alerts & Controls
- LED Indicators
- Green (Power), Orange (Activity)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 3A
- External Power Supply Cord Length (m.)
- 1.37
- External Power Supply Plug(s)
- NEMA 1-15P North America
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.0A
External Power Supply Cord Length (ft.)4.5
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsFCC; RoHS; UL; cUL
Communications
- Signal Range (ft.)
- 200
Environmental
- Operating Temperature Range
- 14 to 167 F (-10 to 75 C)
- Relative Humidity
- 0% to 85%, Non-Condensing
Storage Temperature Range-4 to 176 F (-20 to 80 C)
Overview
- UPC Code
- 037332157515
AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
