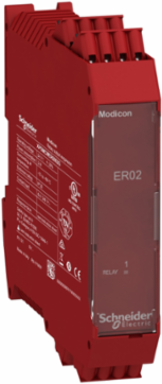

Schneider Electric XPSMCMER0002G 2 safety relay outputs expansion module with spring term
- MPN: XPSMCMER0002G
- PPN: SCH-XPSMCMER0002G
CAD
$437.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2 safety relay outputs expansion module with spring term
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy, United States
Depth114.5 mm
Complementary Attributes
- Integrated Connection Type
- not connected to backplane expansion bus
- Maximum Switching Current
- 6 A
- Minimum Switching Current
- 20 mA
Maximum Power Dissipation In W3 W
Maximum Switching Voltage400 V AC250 V DC
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
- Certificate Agency
- RCM, TÜV, cULus
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- XPSMCM
- Electrical Durability
- 20000000 cycles
- Function Of Module
- monitoring safety actuators relay output
- Mechanical Durability
- 20000000 cycles
- Number Of Terminal Blocks
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Range Of Product
- Preventa Safety automation
- Safety Reliability Data
- B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
- Shock Resistance
- 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
- Switching Time
- 12 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 22.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 241.0 g
- Warranty (In Months)
- 18
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 1 LED green/red RELAY K1 relay contact
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating3.5 A, slow-blow
Electrical Connectionspring terminal
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product Or Component Typesafe relay output module
Quantity Per Set1
ReturnabilityNo
Service Life20 year(s)
Sustainable PackagingNo
Switching Voltage10 V DC
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Number Of Outputs
- 2 relay
Output Typerelay, 2 NO + 1 NC, volt-free
