Schneider Electric XPSMCMER0004G 4 safety relay outputs expansion module with spring term
- MPN: XPSMCMER0004G
- PPN: SCH-XPSMCMER0004G
CAD
$604.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

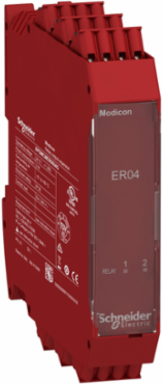

4 safety relay outputs expansion module with spring term
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy, United States
Depth114.5 mm
Complementary Attributes
- Integrated Connection Type
- not connected to backplane expansion bus
- Maximum Switching Current
- 6 A
- Minimum Switching Current
- 20 mA
Maximum Power Dissipation In W3 W
Maximum Switching Voltage400 V AC250 V DC
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
- Certificate Agency
- cULus, RCM, TÜV
- Local Data Status
- Publishable
- Return Indicator
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Associated Fuse Rating
- 3.5 A, slow-blow
- Electrical Connection
- spring terminal
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Product Or Component Type
- safe relay output module
- Quantity Per Set
- 1
- Returnability
- No
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Switching Voltage
- 10 V DC
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs green/red RELAY K1...K2 relay contact
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
Local Publishable Date2025-11-25
Stocking FlagY
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameXPSMCM
Electrical Durability20000000 cycles
Function Of Modulemonitoring safety actuators relay output
Mechanical Durability20000000 cycles
Number Of Terminal Blocks6
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
Range Of ProductPreventa Safety automation
Safety Reliability DataB10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
Shock Resistance10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
Switching Time12 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal22.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)294.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Number Of Outputs
- 4 relay
Output Typerelay, 4 NO + 2 NC, volt-free
