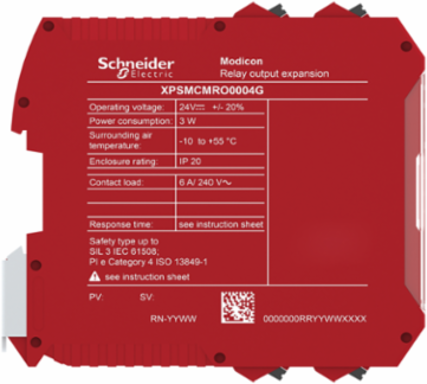

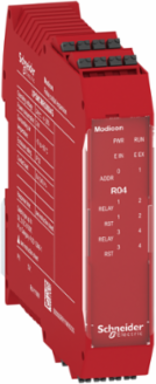

Schneider Electric XPSMCMRO0004G expansion module, Modicon MCM, 4 safety relay outputs, with backplane connection, spring
- MPN: XPSMCMRO0004G
- PPN: SCH-XPSMCMRO0004G
CAD
$937.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
expansion module, Modicon MCM, 4 safety relay outputs, with backplane connection, spring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|

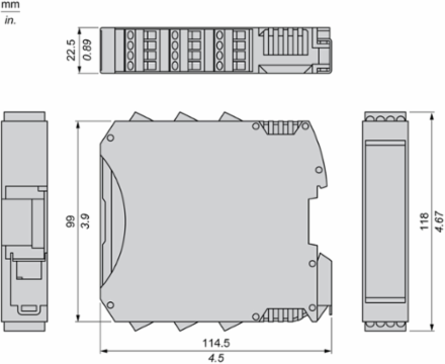

| Depth | 114.5 mm |
|---|
Complementary Attributes
| Integrated Connection Type | backplane expansion bus |
|---|---|
| Maximum Switching Current | 6 A |
| Minimum Switching Current | 20 mA |
| Maximum Power Dissipation In W | 3 W |
|---|---|
| Maximum Switching Voltage | 400 V AC250 V DC |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cable Cross Section | 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel |
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061 |
| Certificate Agency | cULus, TÜV, RCM |
| Carbon Footprint Of The Distribution Phase [A4] | 0.391322836857251, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.040069945564264624, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 112 kg CO2 eq., 111.50379352630267 |
| Local Publishable Date | 2025-11-25 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Device Short Name | XPSMCM |
| Electrical Durability | 20000000 cycles |
| Function Of Module | monitoring safety actuators relay output |
| Mechanical Durability | 20000000 cycles |
| Number Of Terminal Blocks | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Range Of Product | Preventa Safety automation |
| Safety Reliability Data | B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1 |
| Shock Resistance | 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1 |
| Sustainable Packaging | No |
| Switching Voltage | 10 V DC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-FR-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 61800-5-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red RELAY K1...K4 relay contact, 4 LEDs yellow RST reset |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Connections - Terminals | 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 5 kg CO2 eq., 5.102488403826021 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 103 kg CO2 eq., 102.93673359082608 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Associated Fuse Rating | 3.5 A, slow-blow |
| Electrical Connection | spring terminal |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Product Or Component Type | safe relay output module |
| Quantity Per Set | 1 |
| Returnability | No |
| Service Life | 20 year(s) |
| Software Version | v6.2.4 |
| Switching Time | 12 ms |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Pep Code | ENVPEP1406025_V3 |
| Pep Verification Date | 2026-01-15 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 34 |
| Width Nominal | 22.5 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Package Weight(Lbs) | 288.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406025_V3 |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1406025_V3 |
| Pcr Version | PCR-ed4-FR-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Carbon Footprint | 0 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2026-01-15 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | safe relay output module |
|---|
| Range Of Product | Preventa Safety automation |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Discrete Output Number | 8-8 solid state 125 mA diagnostics) |
|---|---|
| Output Type | relay, 4 NO, volt-free |
| Number Of Outputs | 4 relay |
|---|
