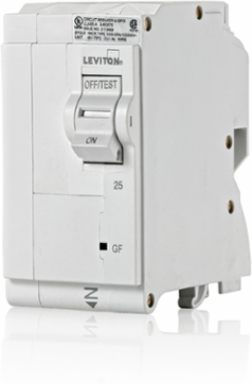

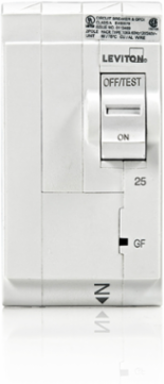

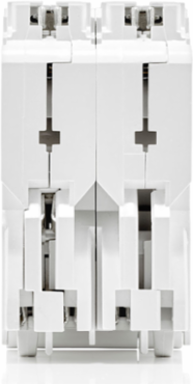

Leviton LB225-G 25A 2-Pole GFCI Circuit Breaker, Hydraulic Magnetic, 120/240V, -40 C to 85 C Operating Temp
- MPN: LB225-G
- UPC: 078477468616
- PPN: LEV-LB225-G
CAD
$205.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25A 2-Pole GFCI Branch Circuit Breaker with Hydraulic Magnetic Trip Technology and Plug-On Installation. Supports both 120/208V and 120/240V applications
Features
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- HYDRAULIC MAGNETIC – Precision trip technology ensures that the main breaker operates as intended from -40°C to 85°C (-40°F to 185°F) without re-rating
- SAFE – Leviton GFCI, AFCI and dual-function circuit breakers feature patented reset lockout technology, and will not reset if ground or arc fault protection is compromised
- INTUITIVE – LEDs communicate trip condition and type of fault, and remain illuminated even when tripped *Designed for Leviton Load Centers only
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Electrical Specifications
- Amperage
- 25 A
- Operating Temperature
- -40°C to 85°C
- Short Circuit Current Rating
- 10 KA
- Voltage
- 120/208 and 120/240 VAC
Breaker TechnologyHydraulic Magnetic
Pole2
TypeGFCI
Product Features
- Smart
- No
WarrantyLimited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
Standards & Certifications
- EMC Compatibility
- Yes
- RoHS
- Yes
FCCYes
UL 489Molded Case Circuit Breakers
