Tripp Lite PDUMNV20HVLX 3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA

3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8m/70 in., TAA
  • MPN: PDUMNV20HVLX
  • UPC: 037332205339
  • PPN: TRP-PDUMNV20HVLX

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1125.08/ EA

Description

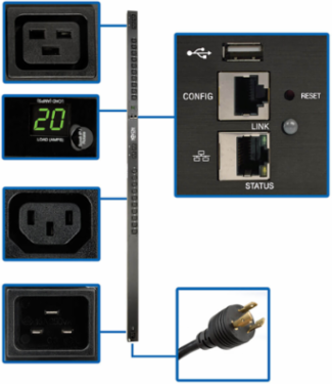

3.3–3.7kW vertical PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

  • 3.3–3.7kW 208/230V single-phase monitored 0U PDU

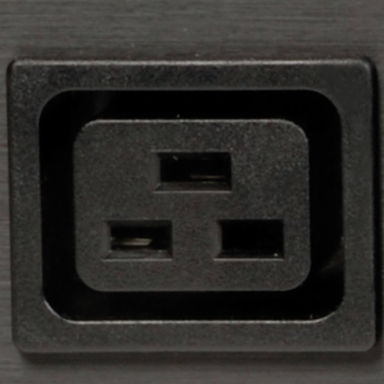

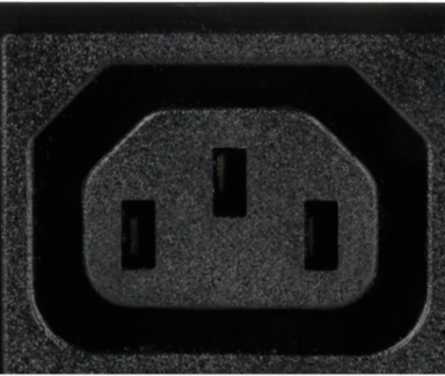

  • 24 outlets—20 C13, 4 C19—with plug-lock insert sleeves
  • Built-in Java-free LX Platform interface for remote access 24/7
  • Digital ammeter for on-site load monitoring in real time

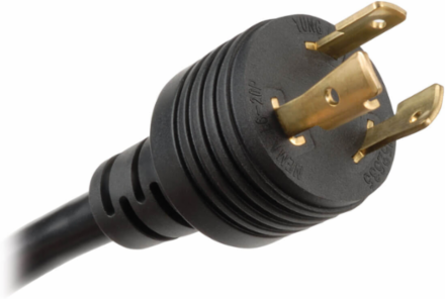

  • C20 inlet input with detachable 10 ft. NEMA L6-20P power cord
  • 2-year limited warranty

Specifications

Certifications

UPS Certification Details
EN55022:2010+2011, EN55024:2010
CertificationsTested to UL60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1: 2005 (Canada), CE (International), FCC Class A (Emissions), NOM (Mexico), RoHS compliant, TAA compliant

Physical

Form Factors Supported

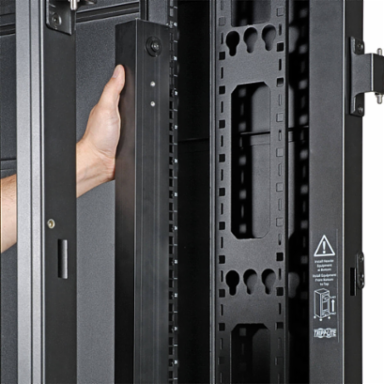

0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
Shipping Dimensions (hwd / in.)
4.00 x 6.00 x 72.50
Unit Dimensions (hwd / in.)
70 x 2.19 x 2.65
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)13.50
Unit Weight (lbs.)8.5

User Interface, Alerts & Controls

Front Panel LCD Display

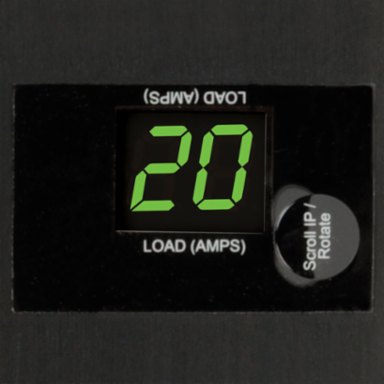

Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Switches
Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees
Front Panel LEDsn/a

Input

PDU Input Voltage
208; 230
Maximum Input Amps
20
PDU Plug Type
NEMA L6-20P; IEC-320 C20
Input Cord Length (ft.)
10
Recommended Electrical Service20A 208V; 16A 230V

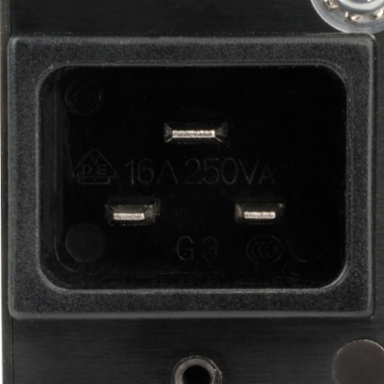

Input Connection TypeC20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported.
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(20) C13; (4) C19
Overload Protection
n/a
Output Capacity Details3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage208; 230

Communications

SNMP Compatibility

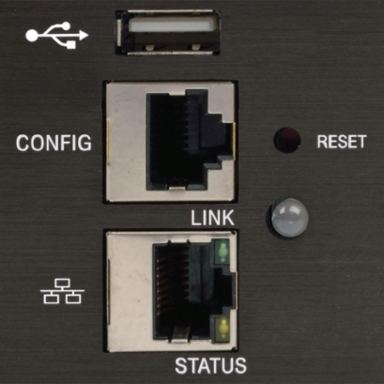

Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Environmental

Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)
Relative Humidity5-95% non-condensing

Overview

UPC Code
037332205339
PDU TypeMonitored

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
