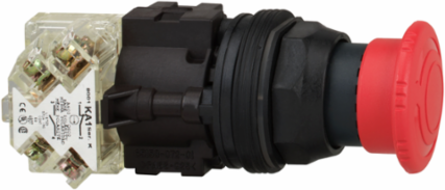

Schneider Electric 9001SKR16H13 Emergency Stop Push Button, Mushroom 40mm, Red, 30mm, IP66
- MPN: 9001SKR16H13
- UPC: 785901949978
- PPN: SCH-9001SKR16H13
CAD
$236.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, emergency stop / shutdown 30mm mushroom head modular red push button has 2 positions, operates with a latched turn to release mechanism. It has a double insulated plastic bezel and has 1 x NO + 1 x NC contacts and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is connected with simple screw-clamp connections. It is easily installed into a standard 30mm diameter cut-outs. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- emergency stop push-button
- Device Short Name
- 9001SK
Type Of Operatorturn to release trigger action
Operator Profilered mushroom Ø 40 mm, unmarked
Complementary
- Contacts Type And Composition
- 1 C/O
- Contacts Material
- silver alloy contacts
- Operator Profile
- mushroom Ø 40 mm
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.141 kg
- Size
- 30 mm
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Bezel Material
- plastic
- Operator Position Information
- 2 positions
- Compatibility Code
- 9001SK
- Operating Position
- any position
- Cad Overall Width
- 40 mm
- Shape Of Screw Head
- cross slotted
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Mounting Diameter30 mm
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colourred
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cad Overall Height40 mm
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Mechanical Durability5000000 cycles
Type Of Operatorturn to release
Tightening Torque0.8-0.8 N.m IEC 60947-1
Cad Overall Depth116 mm
Environment
- Product Certifications
- UL 508 || NEMA
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsIEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN || ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C 4520 || JIS C 852 || UL 60947-5-5 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121016EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
