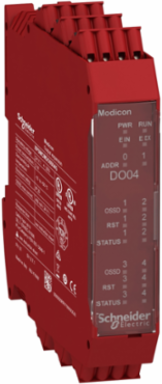

Schneider Electric XPSMCMDO0004G 4 Digital output pairs expansion modules with spring term
- MPN: XPSMCMDO0004G
- PPN: SCH-XPSMCMDO0004G
CAD
$855.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4 Digital output pairs expansion modules with spring term
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, Singapore, United States
Depth22.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Safety Level
- PL e, SIL3can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Connections - Terminals
- 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- XPSMCM
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Group Of Channels
- 4 dual channel load 400mA/output
- Load Type
- resistive load
- Number Of Terminal Blocks
- 6
- Power Consumption In W
- 3 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 114.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 245.0 g
- Warranty (In Months)
- 18
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red OUT output status, 4 LEDs yellow RST restart signal, 4 LEDs yellow STATUS output status
Safety Reliability DataDC > 99 %MTTFd < 100 years high, PFHd = 3.44E-9 1/h
Certificate AgencyRCM, cULus, TÜV
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Connectionspring terminal
Function Of Modulemonitoring safety actuators discrete output
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Power Dissipation In W3 W
Product Or Component Typesafe output expansion module
Range Of ProductPreventa Safety automation
Service Life20 year(s)
Sustainable PackagingNo
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -20-85 °C-20-85 °C
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation-10-55 °C-10-55 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
