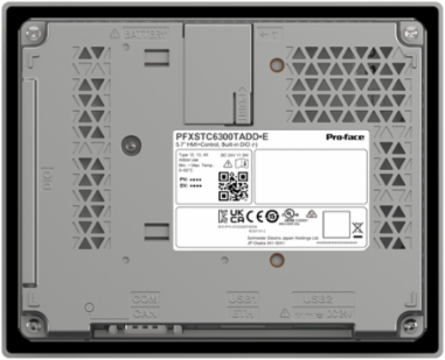

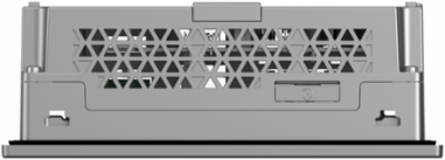

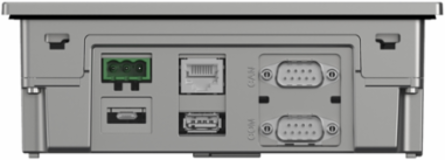

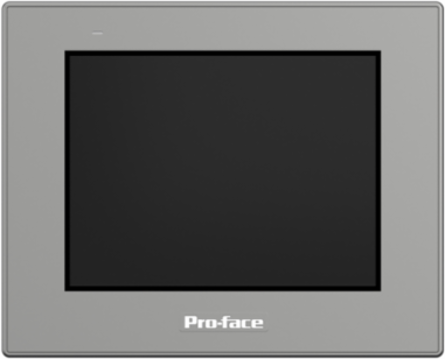

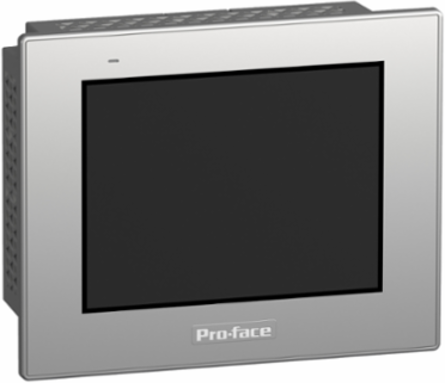

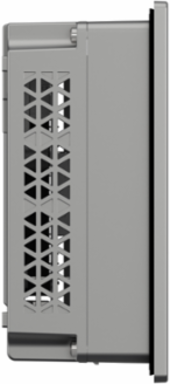

Pro-Face by Schneider Electric PFXSTC6300TADDKE Touch panel, Proface STC6000, 5.7inch wide, built-in DIO sink type,1COM, 1Ethernet, USB, 24VDC
- MPN: PFXSTC6300TADDKE
- PPN: SCH-PFXSTC6300TADDKE
CAD
$1728.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Touch panel, Proface STC6000, 5.7inch wide, built-in DIO sink type,1COM, 1Ethernet, USB, 24VDC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Depth60 mm
Physical Attributes
- Display Size
- 5.7 inch
Display Color262000 colours
Complementary Attributes
- Integrated Connection Type
- COM1 serial link 1 SUB-D 9-pin male RS232C/RS422/RS485 2400...187500 bps Siemens MPI, USB 2.0 type A, USB 2.0 type micro B, Ethernet female RJ45 10BASE-T/100BASE-TX
- Maximum Cable Distance Between Devices
- unshielded cable <10 m fast inputunshielded cable <50 m digital input
- Maximum Output Frequency
- 65 kHz fast output (PWM or PTO mode)
Maximum Input Frequency100 kHz fast input (HSC mode) 1 pulse/direction or A/B encoder input, digital input
Maximum Cycle Time10 ms
Maximum Power Consumption In W11.3 W8 W when power is not supplied to external devices5.6 W when backlight is OFF
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
- Insulation Resistance
- >= 10 MOhm, >= 10 MOhm
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
- Input/Output Number
- 2 fast input16 digital input, 2 fast output, 16 digital output
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.8458425446358864, 0.8 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 39 kg CO2 eq., 39.14111775228557
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 1
- Function Option
- Standard
- Brightness
- 16 levels via touch panel
- Connection Pitch
- 3.5 mm
- Display Resolution
- 640 x 480 pixels VGA
- Electrical Connection
- cable 2 mm², 14 AWG, max resistance 100 Ohm for functional grounding
- Environmental Characteristic
- corrosive gas free
- Inrush Current
- 30 A
- Memory Description
- user data memory 64 MBbackup memory 320 kB
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Pro-face STC6000
- Returnability
- Yes
- Shock Resistance
- 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 905 kg CO2 eq.
- Type Of Cooling
- AN (air natural)
- Display Color
- 262000 colours
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide a HMI during 10 years and a 100% rate at 11.3W，based on below function:& 10- 12" Touchscreen panel.& 10- I/O connectors(embedded/ expansion) .
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 989.88
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; CN
- Height Nominal
- 170 mm
- Cut-out Dimensions
- 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Modeby 4 screws 1.6...5 mm thick panel UL 61010-2-201, by 4 screws IEC 61131-2, IEC 61000-6-2
Number Of Common Point1 fast input (HSC mode), 1 digital input
Certificate AgencyCE, UL/cUL listed, KC, RCM, UKCA
Carbon Footprint Of The Distribution Phase [A4]0.383391153395385, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.9 kg CO2 eq., 0.9418428334435155
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]864 kg CO2 eq., 864.1099999999999
Local Publishable Date2025-09-23
Stocking FlagY
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2305016EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2319
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Configurable Filtering Time0.004...0.04 ms bounce filter
Data Format8 bits, no parity, 1 or 2 stop even or odd
Display Typecolour TFT LCD
Enclosure MaterialPC
Front Materialaluminium
Isolation Between Channelsnone
Processor NameARM Cortex-A8
Product Or Component Typetouch panel screen
Realtime Clockbuilt-in
Sensor Power Supply15-28.8 V DC >= 15 V >= 2.2 mA <= 5 V <= 1 mA
Software PackageGP-Pro EX
Sustainable PackagingNo
Touch Panelsingle touch analogue resistive
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2305016EN
Pep Verification Date2023-06-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN
Recyclability Potential In %40
Width Nominal137 mm
Rated Short-duration Power Frequency Withstand Voltage1000 V AC during 1 min
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Package Weight(Lbs)1.302 kg
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-50 °C
- Directives
- 2014/30/EU - electromagnetic compatibility
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Code
- ENVPEP2305016EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Nema Degree Of ProtectionNEMA 4X front panel (indoor use), NEMA 1NEMA 13 front panel (in enclosure)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint905.4221942837602
Circularity ProfileENVEOLI2305016EN
Environmental DisclosureENVPEP2305016EN
Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel)IP65f IEC 61131-2 front panel)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Storage Relative Humidity10-90 % non-condensing
Pep Verification Date2023-06-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductPro-face STC6000
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Output Attributes
- Discrete Output Current
- high speed input, digital input, 50 mA 3.2 A) fast output (PLS/PWM/PTO mode)0.3 A digital output
- Discrete Output Voltage
- 24 V DC 19.2...28.8 V)transistor
Discrete Output Number2 fast output (PLS/PWM/PTO mode) sink16 digital output sink
Maximum Output Frequency65 kHz fast output (PWM or PTO mode)
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0.004...0.04 ms bounce filter
Input Attributes
- Discrete Input Current
- 2.25 mA fast input, 2.25 mA digital
- Discrete Input Number
- 2 fast input (normal mode) IEC 61131-2 Type 116 digital input IEC 61131-2 Type 1
- Input Voltage Limits
- 19.2...28.8 V DC
Maximum Input Frequency100 kHz fast input (HSC mode) 1 pulse/direction or A/B encoder input, digital input
Discrete Input Voltage24 V DC sink or source (positive/negative)
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
