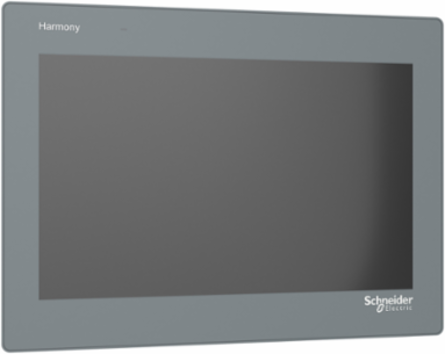

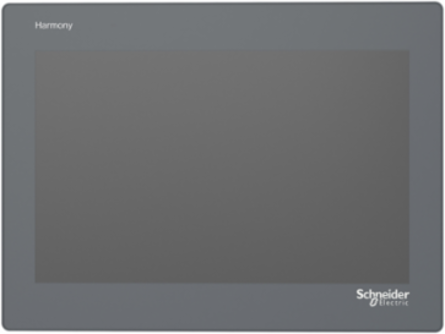

Schneider Electric HMIET6600 12" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
Schneider Electric HMIET6600 12" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
- MPN: HMIET6600
- PPN: SCH-HMIET6600
- UNSPSC: 43211903
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2307.69/ EA
Description
12" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
Features
- Faster processor for better performance and more memory for advanced application design
- Saves HMI investment for machine builders by Design-to-Cost

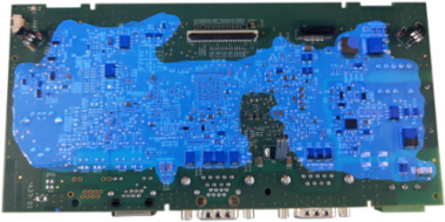

- Sustainability in a harsh environment with PCBA coating
- Easy migration with compatible cut-out, ports, and software for legacy series
- Robust design with isolated power, enhanced serial port protection, and reverse power safety

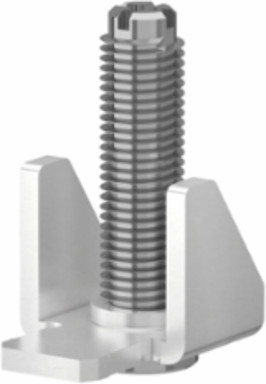

- Easily mounted with anti-drop hooks
- Compliant with California Law and IEC 62443-4-1, developed using SDL v2
Specifications
Physical Attributes
- Display Color
- 16 million colours
Display Size12 inch
Conformance Attributes
- Product Certifications
- CE, UL, EAC (pending), KC-Mark (pending)
StandardsIEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-1-201
Complementary Attributes
- Integrated Connection Type
- 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C 2400...115200 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 2400...115200 bps)bottom, COM2 serial link 2400...187500 bps)bottom, 1 Ethernetbottom, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Realtime Clock
- built-in 0...50 °C, built-in 10...90 % RH
- Carbon Footprint Of The Distribution Phase A4
- 0.209009093, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.020690998
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 123 kg CO2 eq., 1122.5355555556
- Downloadable Protocols
- Modbus, Uni-TE, third party protocols
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2021-03-29
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- WEEE Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2101004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Function Option
- Standard
- Display Color
- 16 million colours
- Display Type
- colour TFT LCD
- F Gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Immunity To Microbreaks
- 5 ms
- Operating System
- VxWorks
- Port Ethernet
- 10/100BASE
- Processor Name
- ARM Cortex-A8
- Product Brand
- Schneider Electric
- Range Of Product
- Easy Harmony ET6
- Shock Resistance
- 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
- Supply
- external supply
- Total Lifecycle Carbon Footprint
- 1 492 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- 12" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
- Front Material
- plastic
- Software Package
- Vijeo Designer Basic
- Us Rated Supply Voltage5
- 24 V DC +/- 20 %
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Signallingstatus LED green, steady operating, status LED orange, steady software starting up, status LED red, steady power supply (ON), status LED, off power supply (OFF)
Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9-150 Hz)
Carbon Footprint Of The End Of Life Phase C1 To C40.447534667, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3369 kg CO2 eq., 368.9836326438
Character FontASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
Memory Descriptiondevice memory 256 MB, user data memory 256 MB, backup memory 128 kB
Local Publishable Date2026-02-24
Pre Comm Date2021-04-26
ServiceabilityYes
Field Service DivisionIDIBS
WEEE ApplicabilityFinished product
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function Option IdSTANDARD

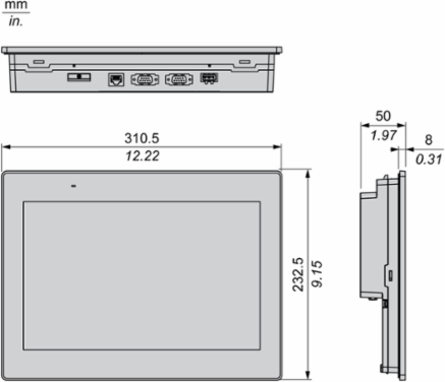

Cut Out Dimensions295 x 217 mm panel cut dimension
Display Resolution1280 x 800 pixels WXGA
Enclosure MaterialPC
Fixing Modeby 4 screws 1.6...5 mm thick panel
Inrush Current30 A
Package Weight Lbs2.251 kg
Power Consumption In W14 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typetouch panel screen
ReturnabilityYes
Software DesignationVijeo Designer Basic
Sustainable PackagingNo
Touch Panelsingle touch analogue resistive
Us Rated Supply Voltage224 V DC +/- 20 %
Stocking FlagN
Pep CodeENVPEP2101004EN
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo provide a human machine interface during 10 years and a 100% use rate at 9W.
Energy Model Manufacturing A1 A3 2Energy model used: China
Energy Model Use B6 2Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Brightness16 levels
Number Of Pages200 application pages
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-50 °C
- Circularity Profile
- ENVEOLI2101004EN
- F Gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2101004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP Degree Of ProtectionIP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint1492.1964229572
Ambient Air Temperature For Storage-20-60 °C
Environmental DisclosureENVPEP2101004EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductEasy Harmony ET6
Specifications
- Country of Origin
- Indonesia, Mexico
Depth50 mm
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLE, User replaceable
