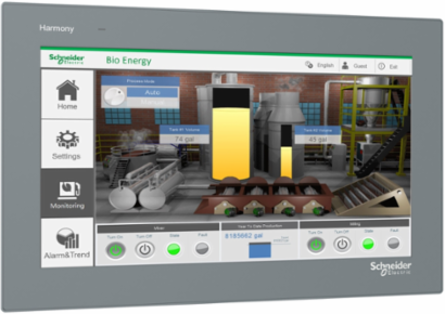

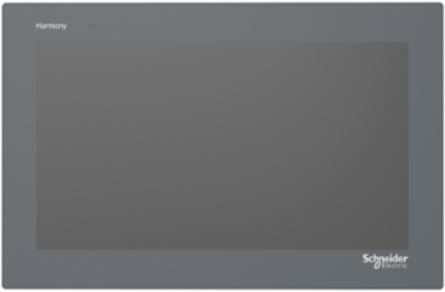

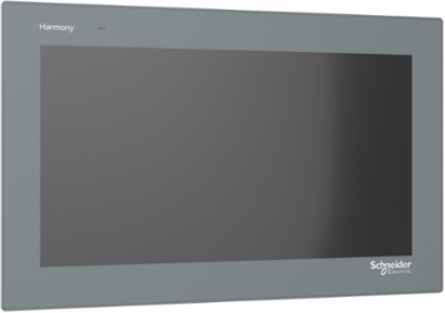

Schneider Electric HMIET6700 15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

  • MPN: HMIET6700
  • PPN: SCH-HMIET6700

CAD

$2776.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, China, France, Indonesia, Mexico, United States

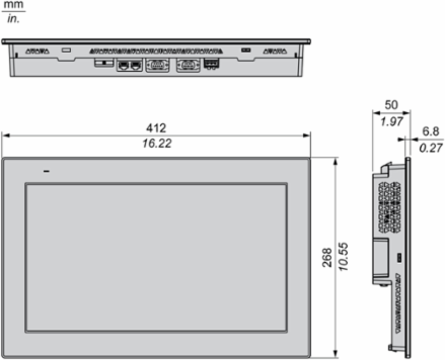

Depth50 mm

Physical Attributes

Display Size15 inch
Display Color16 million colours

Complementary Attributes

Integrated Connection Type1 COM1 serial link - 1 SUB-D 9-pin male - RS232C 2400...115200 bps)bottom1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 2400...115200 bps)bottom, COM2 serial link 2400...187500 bps)bottom, 1 Ethernetbottom1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB, SC
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Character FontASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
Memory Descriptiondevice memory 256 MB, user data memory 256 MBbackup memory 128 kB
Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
Carbon Footprint Of The Distribution Phase [A4]0.3251252557, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0321859968
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 483 kg CO2 eq., 1483.3505555556
Local Publishable Date2026-02-24
Pre Comm Date2021-04-26
Stocking FlagY
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2101004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2125
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Display Resolution1366 x 768 pixels FWXGA
Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
Fixing Modeby 4 screws 1.6...5 mm thick panel
Immunity To Microbreaks5 ms
Local Signallingstatus LED green, steady operatingstatus LED orange, steady software starting upstatus LED red, steady power supply (ON)status LED, off power supply (OFF)
Operating SystemVxWorks
Power Consumption In W18.5 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typetouch panel screen
ReturnabilityYes
Software DesignationVijeo Designer Basic
Software VersionEIME v5.8.1
Sustainable PackagingNo
Touch Panelsingle touch analogue resistive
Display Color16 million colours
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Height Nominal268 mm
[Us] Rated Supply Voltage24 V DC +/- 20 %
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1912.345
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Downloadable ProtocolsModbus, Uni-TE, third party protocols
Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
Certificate AgencyCE, UL, EAC (pending), KC-Mark (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6961650375, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]574 kg CO2 eq., 573.9745396681
Local Data StatusPublishable
Pre Comm Announcement Date2021-03-29
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Brightness16 levels
Display Typecolour TFT LCD
Enclosure MaterialPC
Front Materialplastic
Inrush Current30 A
Number Of Pages200 application pages
Port Ethernet10/100BASE
Processor NameARM Cortex-A8
Product BrandSchneider Electric
Range Of ProductHarmony ET6
Shock Resistance147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Software PackageVijeo Designer Basic
Supplyexternal supply
Total Lifecycle Carbon Footprint2 058 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2101004EN
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide a human machine interface during 10 years and a 100% use rate at 9W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1620.6
Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Width Nominal412 mm
Cut-out Dimensions394 x 250 mm panel cut dimension
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Package Weight(Lbs)3.397 kg
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1912.345
Customs Code8537109170

Environment Attributes Main

Ambient Air Temperature For Storage-20-60 °C, -20-60 °C
Take BackNo
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP2101004EN
Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint2058.3785715137
Circularity ProfileENVEOLI2101004EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 4 front panel (indoor use)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2101004EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Typetouch panel screen
Range Of ProductHarmony ET6

ETIM

ETIM 8EC001412
ETIM 9EC001412

Batteries & Runtime Attributes

Removable BatteryUSER_REPLACEABLEUser replaceable
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
15" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
