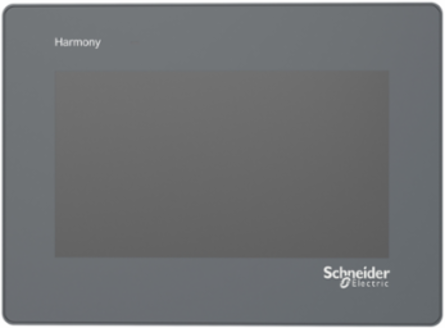

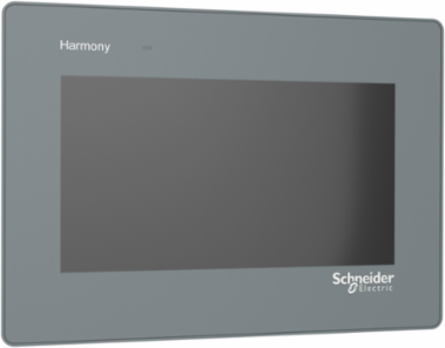

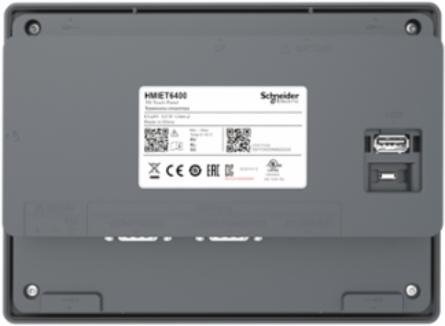

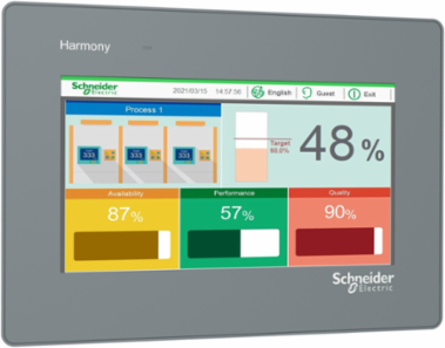

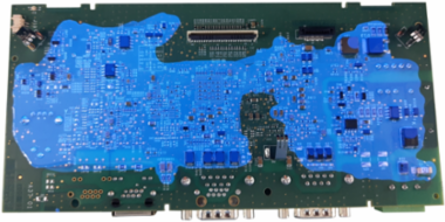

Schneider Electric HMIET6400 7" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
- MPN: HMIET6400
- PPN: SCH-HMIET6400
CAD
$666.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HMIET6400 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 205.5mm (width) x 150.5mm (height) x 45mm (depth) and weighs 0.60Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Mexico
Depth45 mm
Physical Attributes
- Display Size
- 7 inch
Display Color16 million colours
Complementary Attributes
- Integrated Connection Type
- 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C 2400...115200 bps)bottom1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 2400...115200 bps)bottom, COM2 serial link 2400...187500 bps)bottom, 1 Ethernetbottom1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
- Memory Description
- device memory 256 MB, user data memory 256 MBbackup memory 128 kB
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11351, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.011237
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 722 kg CO2 eq., 721.63
- Local Publishable Date
- 2026-02-24
- Pre Comm Date
- 2021-04-26
- Stocking Flag
- Y
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Use Carbon Footprint
- 721.63
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2101004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2125
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 800 x 480 pixels WVGA
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Fixing Mode

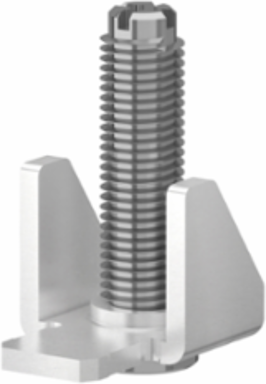

- by 4 screws 1.6...5 mm thick panel
- Immunity To Microbreaks
- 5 ms
- Local Signalling
- status LED green, steady operatingstatus LED orange, steady software starting upstatus LED red, steady power supply (ON)status LED, off power supply (OFF)
- Operating System
- VxWorks
- Power Consumption In W
- 9 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- touch panel screen
- Returnability
- Yes
- Software Designation
- Vijeo Designer Basic
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Touch Panel
- single touch analogue resistive
- Display Color
- 16 million colours
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
- Recyclability Potential In %
- 66

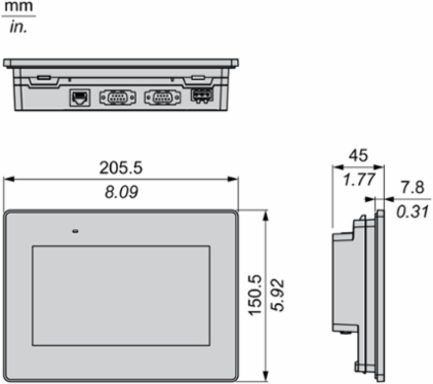

- Width Nominal
- 206 mm
- Cut-out Dimensions
- 190 x 135 mm panel cut dimension
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 879.000 g
- Take-back
- No
- Air Pollution (M3) Total Life Cycle
- 88813
- Air Pollution (M3) Distribution [A4]
- 4.8288
- Air Pollution (M3) End Of Life [C1-c4]
- 8.6043
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 2503.3
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 9998.7
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 200.39
- Hazardous Waste Disposed Of (Kg) Total Life Cycle
- 207.28
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 20.767
- Net Use Of Fresh Water (M3) Total Life Cycle
- 3.9281
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 149.56
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 114.67
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2712.6
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 10304
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 14002
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 1.605
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 1.1982
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 51.899
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 14.095
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 13005
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 1.6029
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 1.197
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 51.894
- Water Pollution (M3) Total Life Cycle
- 49382
- Water Pollution (M3) Distribution [A4]
- 18.667
- Water Pollution (M3) Operational Energy Use [B6]
- 37514
- Customs Code
- 8537109170
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Downloadable ProtocolsModbus, Uni-TE, third party protocols
Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
Certificate AgencyCE, UL, EAC (pending), KC-Mark (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.24305, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]200 kg CO2 eq., 200.39
Local Data StatusPublishable
Pre Comm Announcement Date2021-03-29
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Manufacturing Carbon Footprint200.39
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Brightness16 levels
Display Typecolour TFT LCD
Enclosure MaterialPC
Front Materialplastic
Inrush Current30 A
Number Of Pages200 application pages
Port Ethernet10/100BASE
Processor NameARM Cortex-A8
Product BrandSchneider Electric
Range Of ProductHarmony ET6
Shock Resistance147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Software PackageVijeo Designer Basic
Supplyexternal supply
Total Lifecycle Carbon Footprint922 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2101004EN
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide a human machine interface during 10 years and a 100% use rate at 9W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh788.4
Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU
Height Nominal151 mm
[Us] Rated Supply Voltage24 V DC +/- 20 %
Carbon Footprint (Kg Co2 Eq Total Life Cycle)922.39
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]18544
Air Pollution (M3) Operational Energy Use [B6]70255
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle12505
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]1.5948
Global Warming (Kg.Equivalent.Co2) Total Life Cycle922.39
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]721.63
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]185.46
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.0534
Net Use Of Fresh Water (M3) Manufacturing [A1-a3]3.1325
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]34.884
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle13020
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]1.6029
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.197
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]2764.5
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]11235
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle982.23
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]930.33
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]14.095
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2698.5
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]10304
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle982.23
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]930.33
Water Pollution (M3) Manufacturing [A1-a3]11834
Water Pollution (M3) Installation [A5]1.7413
Water Pollution (M3) End Of Life [C1-c4]13.505
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 922.39
- Circularity Profile
- ENVEOLI2101004EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2101004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP2101004EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2021-03-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductHarmony ET6
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
