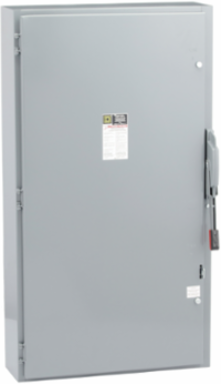

Square D CHU366 Heavy Duty Safety Switch, 600A, 600VAC/VDC, 3 Poles, NEMA 1
- MPN: CHU366
- UPC: 785901181767
- PPN: SCH-CHU366
CAD
$3765.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric CHU366 Heavy Duty Safety Switch is designed for high-performance power distribution and reliability in demanding applications. With a robust rating of 600A and an operating capacity of 600VAC/VDC, this safety switch adeptly manages and disconnects electrical loads with confidence. Featuring three poles and a NEMA 1 enclosure, it effectively meets the safety and operational needs of various industrial environments. This switch is an essential component for ensuring safe and efficient electrical distribution, making it a vital addition to any heavy-duty system.
Documentation & Downloads
Specifications
Additional
- Amperage
- 600 A
- Number of Poles
- 3
- Duty Rating
- Heavy duty
- Electrical Connection
- Lugs
- Tightening Torque
- 375 lbf.in
- Width
- 27.63 in
- Certifications
- CSA
- Mercury Free
- Yes
- Halogen Content
- Halogen free plastic parts
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- Heavy duty
Voltage600 V AC/DC
Motor Power200 Hp at 240 V AC, 400 Hp at 480 V AC, 500 Hp at 600 V AC, 50 Hp at 250 V DC, 50 Hp at 600 V DC
Disconnect TypeNon-fusible disconnect
Wire SizeAWG 3/0...500 kcmil copper or aluminum
Height50.25 in
Depth10.13 in
Enclosure RatingNEMA 1 galvannealed steel
PVC FreeYes
Sustainable Offer StatusGreen Premium product
Device MountingSurface
