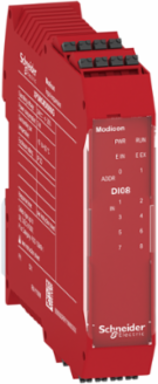

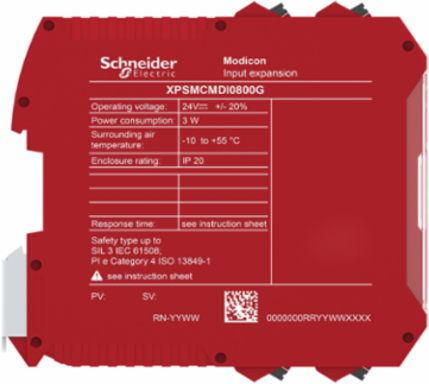

Schneider Electric XPSMCMDI0800G expansion module, Modicon MCM, 8 inputs, spring
- MPN: XPSMCMDI0800G
- PPN: SCH-XPSMCMDI0800G
CAD
$660.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
expansion module, Modicon MCM, 8 inputs, spring
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Italy, Singapore
Depth22.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Local Signalling
- 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address8 LEDs yellow IN input status
- Safety Reliability Data
- PFHd = 5.75E-9 1/h, DC > 99 %MTTFd < 100 years high
- Certificate Agency
- TÜV, RCM, cULus
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06439836120960324, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.18046491274790288
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 127 kg CO2 eq., 127.2214464091827
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- XPSMCM
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Power Dissipation In W
- 3 W
- Product Or Component Type
- safe input expansion module
- Range Of Product
- Preventa Safety automation
- Service Life
- 20 year(s)
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 136 kg CO2 eq.
- Pep Code
- ENVPEP2606036_V1
- Pep Verification Date
- 2026-06-22
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 1020
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
- Recyclability Potential In %
- 2
- Width Nominal
- 114.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 222.0 g
- Warranty (In Months)
- 18
Function Of Modulemonitoring safety detection discrete input, monitoring safety dialogue discrete input
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3222178530419244, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.877872067354449
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Connectionspring terminal
Insulation250 V AC between power supply and housing IEC 61800-5-1
Number Of Terminal Blocks4
Power Consumption In W3 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -10-55 °C-10-55 °C
- Environmental Disclosure
- ENVPEP2606036_V1
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2606036_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint135.6663996035366
Ambient Air Temperature For Storage-20-85 °C-20-85 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safe input expansion module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Discrete Output Type
- PNP
Number Of Outputs4 test line control
Input Attributes
- Discrete Input Type
- PNP
- Number Of Inputs
- 8 digital
Discrete Input Voltage24 V DC
