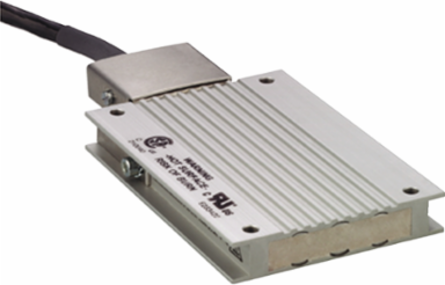

Schneider Electric VW3A7602R07 braking resistor - 27 ohm - 100 W - cable 0.75 m - IP65

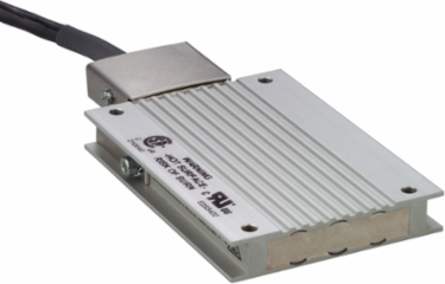

Schneider Electric VW3A7602R07 braking resistor - 27 ohm - 100 W - cable 0.75 m - IP65
- MPN: VW3A7602R07
- PPN: SCH-VW3A7602R07
- UNSPSC: 39122004
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$329.00/ EA
Description
This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It dissipates the braking energy, and enables maximum transient braking torque. It has anohmic value of 27Ohms and a cable lenght of 0.75m. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. Its protection index is IP65. The operating temperature around the unit can be between 0degrecentigrade and plus 50degrecentigrade. It weighs 0.630kg. The external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. This external braking resistor is compatible with Easy Lexium 16 servo drives. It is sold by one piece. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
Features
- Dissipates excess braking energy
- Easy to select and order thanks to the just enough number of references
- Easy to mount and wire up
- Specially designed for simple machines
Specifications
Physical Attributes
- Cable Length
- 0.75 m
Important Information Attributes
- Range Of Product
- Lexium, Altivar
- Local Data Status
- Publishable
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Continuous Power
- 100 W
- Package Weight Lbs
- 600.0 g
- Product Or Component Type
- braking resistor
- Returnability
- No
- Accessory Separate Part Category2
- protection accessories
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Energy Peak1900 J 400 V, 3800 J 230 V, 1900 J 480 V, 4200 J 115 V
Local Publishable Date2026-01-12
ServiceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Ohmic Value27 Ohm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via the servo drive
Sustainable PackagingNo
Medium Descbraking resistor - 27 ohm - 100 W - cable 0.75 m - IP65
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- IP Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- No
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-85 °C
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Lexium, Altivar
Product Or Component Typebraking resistor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
