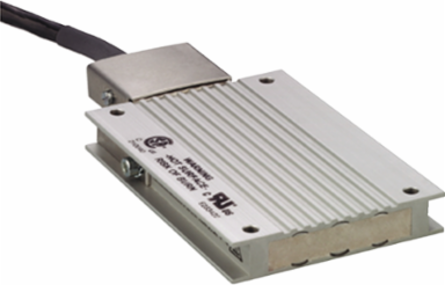

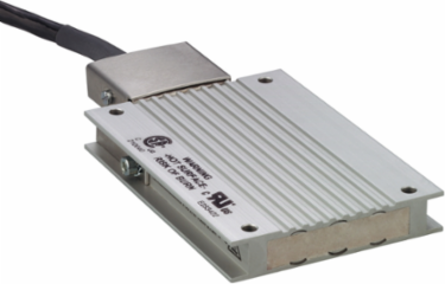

Schneider Electric VW3A7601R30 braking resistor - 10 ohm - 400 W - cable 3 m - IP65
- MPN: VW3A7601R30
- PPN: SCH-VW3A7601R30
- UNSPSC: 39122001
CAD
$626.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This braking resistor is an accessory for variable speed drives of the Lexium and Altivar ranges. It allows your drive to operate while braking to a standstill or during slowdown braking. It has an Ohmic value of 10Ohms at 20°C and its protection index is IP65. The length of its cable is equal to 3m. It weighs 1.62kg. The Altivar Process Modular offer is designed for easy and cost-effective integration of power-intensive drives into cabinets.
Features
- Enable maximum transient braking torque
- Thermal protection via the servo drive
- IP65 degree of protection
- Easy to install
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
Physical Attributes
| Cable Length | 3 m |
|---|
Important Information Attributes
| Energy Peak | 7300 J 400 V, 7300 J 480 V13300 J 230 V18800 J 115 V |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Ohmic Value | 10 Ohm |
| Product Or Component Type | braking resistor |
| Returnability | Yes |
| Accessory / Separate Part Category | protection accessories |
| Customs Code | 8533390080 |
| Range Of Product | Altivar, Lexium |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2010 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Continuous Power | 400 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | thermal protection via the servo drive |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-85 °C, -25-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-50 °C |
| Ip Degree Of Protection | IP65 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Range Of Product | Altivar, Lexium |
|---|
| Product Or Component Type | braking resistor |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
