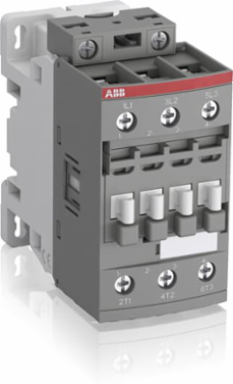

ABB AF26N1-30-00-11 3 Pole Contactor 11 kW AC, 24-60V 50/60Hz, 20-60V DC, DIN Rail Mount
- MPN: AF26N1-30-00-11
- UPC: 804325725064
- PPN: ABB-AF26N1-30-00-11
- UNSPSC: 39121529
CAD
$494.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF26N1-30-00-11 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz, 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Voltage
- 24-60 V AC/DC
- Number of Poles
- 3
- Maximum Motor Horsepower
- 15 hp / 480 V
- Rated Operational Power AC-3 (Pe)
- (400 V) 11 kW, (440-500-690 V) 15 kW, (220-240 V) 6.5 kW
- Rated Operational Current AC-3 (Ie)
- (415 V) 26 A, (440 V) 26 A, (500 V) 23 A, (690 V) 17 A, (380-400 V) 26 A, (220-240 V) 26 A at 60 C
- Rated Operational Voltage
- Main Circuit 690 V
- Maximum Operating Voltage UL/CSA
- 600 V Main Circuit
- Maximum Breaking Capacity
- 200 A at 440 V (cos =0.45), 200 A at 690 V (cos =0.45)
- Full Load Amps Motor Use
- 2 A (120 V AC) Single Phase, 7.5 A (200-208 V AC) Three Phase, 3 A (240 V AC) Single Phase, 15 A (440-480 V AC) Three Phase, 20 A (550-600 V AC) Three Phase
- Product Net Weight
- 0.31 kg
- Mounting on DIN Rail
- TH35-15 and TH35-7.5 acc. to IEC 60715
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 1.5-10 mm2, Insulated Ferrule 1x 1.5-10 mm2 and 2x 1.5-4 mm2, Rigid Solid/Stranded 1/2x 2.5-10 mm2
- Connecting Capacity Main Circuit UL/CSA
- Rigid Solid/Stranded 1/2x 14-10 AWG
- Mounting Position
- Positions 1, 1 +/-30 , 2, 3, 4, 5
- Number of Main Contacts NC
- 0
- Number of Auxiliary Contacts NC
- 0
- Tightening Torque
- Control Circuit 1.2 N m, Main Circuit 2.5 N m; UL/CSA Control Circuit 11 in lb, Main Circuit 22 in lb
- Rated Insulation Voltage (Ui)
- 690 V acc. to IEC 60947-4-1; 600 V UL/CSA
- Degree of Protection
- IP20 Coil and Main Terminals acc. to IEC 60529, IEC 60947-1, EN 60529
- Pollution Degree
- 3
- Power Loss
- 1.8 W AC-1, 0.6 W AC-3 per pole
- Rated Short-time Withstand Current Low Voltage (Icw)
- 350 A 10s, 700 A 1s, 225 A 30s, 150 A 1 min, 50 A 15 min at 40 C ambient, cold start
- Resistance to Shock
- Up to 30 g depending on direction acc. IEC 60068-2-27
- Surge Protection
- Built-in
Frequency50/60 Hz
Maximum Motor Power11 kW / 400 V AC
Maximum Current45 A
Horsepower Rating NEMA(115 V) 2 Hp Single Phase, (200-230 V) 7.5 Hp Three Phase, (230 V) 3 Hp Single Phase, (460-575 V) 10 Hp Three Phase
Maximum Mechanical Switching Frequency3600 cycles per hour
Rated Control Circuit Voltage (Uc)24-60 V AC/DC at 50/60 Hz; DC Operation 20-60 V
General Use Rating UL/CSA45 A at 600 V AC
Continuous Current Rating NEMA27 A
Mounting TypeScrew Terminals
Dimensions86 mm Height x 45 mm Width x 86 mm Depth
Terminal TypeScrew Terminals
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75-2.5 mm2, Insulated Ferrule 1x 0.75-2.5 mm2 and 2x 0.75-1.5 mm2, Rigid Solid/Stranded 1/2x 1-2.5 mm2
Connecting Capacity Control Circuit UL/CSARigid Solid/Stranded 1/2x 18-14 AWG
Number of Main Contacts NO3
Number of Auxiliary Contacts NO0
Wire Stripping LengthControl Circuit 10 mm, Main Circuit 14 mm
NEMA Size1
Rated Impulse Withstand Voltage (Uimp)6 kV
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Ambient Air Temperature-25 to 60 C (with thermal O/L relay), -40 to 70 C (without thermal O/L relay), Storage -60 to +80 C
Operate TimeCoil De-energization to NC Contact Closing 13-98 ms; Coil De-energization to NO Contact Opening 11-95 ms; Coil Energization to NC Contact Opening 38-90 ms; Coil Energization to NO Contact Closing 40-95 ms
Resistance to Vibrations5-300 Hz, 4 g closed position / 2 g open position acc. IEC 60068-2-6
Climatic WithstandCategory B acc. IEC 60947-1 Annex Q
