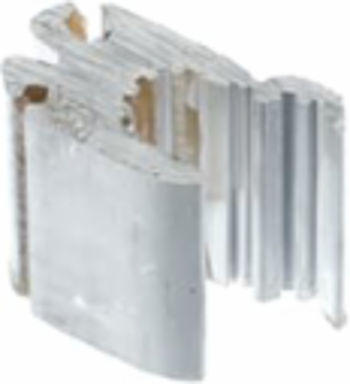

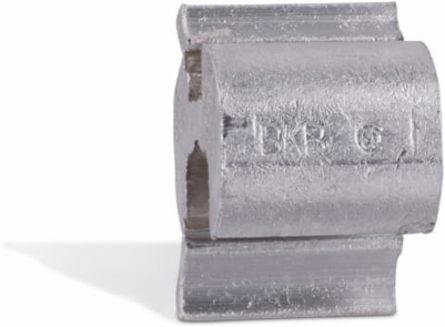

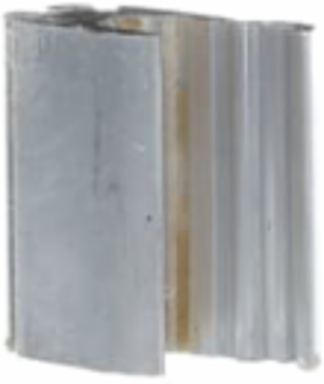

Blackburn WR139 Aluminum H-Type Compression Connector 1/0-4 ACSR, 2/0-3 Str. 1-1/2 Inch Length
- MPN: WR139
- UPC: 783786100361
- PPN: T-B-WR139
- UNSPSC: 39121409
CAD
$7.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Wide Range H-Type Compression Connector Main: 1/0 - 4 ACSR, 2/0 - 3 Str., 2/0 - 2 Sol. Tap: 8 -10 Str., 6 - 10 Sol., Groove C: 12 - 14 Str., 12 -14 Sol. Die: O
Specifications
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
Additional Information
- Application
- For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
- Connection Type
- Compression
- Insulation Material
- None
- Number of Conductors
- 3
- Product Type
- H-Type Compression Tap Connector
- Special Functions
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area.
- Temperature Range
- up to 90 °C
Brand / LabelBlackburn
Effective Date19991027
Mounting TypeNone
Product NameWR COMPRESSION CONN
SizeLength 1-1/2 inch
StandardsRUS Accepted. Complies with ANSI C119.4 Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
