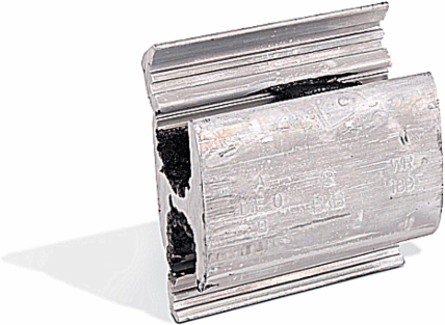

Blackburn DB 3 Aluminum Wide-Range Tap Connectors, Length 1-7/8 Inch, 2 Conductors
- MPN: DB 3
- UPC: 783786717156
- PPN: T-B-DB 3
CAD
$8.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum H-Tap Compression Connectors, length 1-7/8 inch, die D. 3 Connectors
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 250
- Weight Uom
- 12.5 lbs. per 100
Inner Dimensions (inches)9.8x5.6x5.3
Outer Dimensions (inches)14.25x13.5x12
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area.
- Standard
- RUS Accepted. Complies with ANSI C119.4 Specifications
- Connection
- Compression/ Crimp
- Number Of Conductors
- 2
- Finish
- Bare
- Insulation
- None
- Mounting
- None
IGCC4543 Wire connectors
TypeAluminum Wide-Range Aluminum Tap Connectors
ApplicationFor Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
SizeLength 1-7/8 inches
Wire SizeDiameter Main - .398-.470, Tap - .162-.332
MaterialAluminum
Voltage RatingNone since Uninsulated
Temperature Ratingup to 90 Degrees C.
Environmental ConditionsAll Seasons / Conditions
