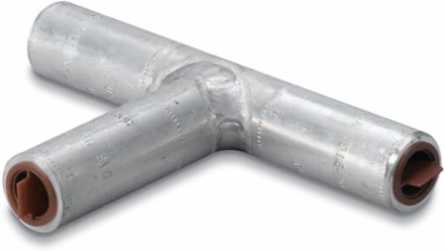

Blackburn AT 500-500 Aluminum Tee Connector 500 kcmil for Aluminum & Copper, 8 Inch Length
- MPN: AT 500-500
- UPC: 783786039814
- PPN: T-B-AT 500-500
- UNSPSC: 39121409
CAD
$323.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Tees, Main 500 kcmil AL-CU, Tap 500 kcmil AL-CU. Main Length 3-1/8 inch x 1-5/16 inch outside Diameter. Total Tap Length 8 inch x 1-5/16 inch outside Diameter. Dies 106, 300, 1 5/16, 15A. Oxide Inhibitor. Pink Caps. With Dimple.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- For Aluminum and Copper Connections
- Connection Type
- Compression
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Length 8 inches, Tap 3-1/8 inch
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20101104
Product TypeTee, Compression
Special FunctionsMade from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. All Tees marked with conductor sizes and die reference for easy identification.
Wire Size500 kcmil
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
