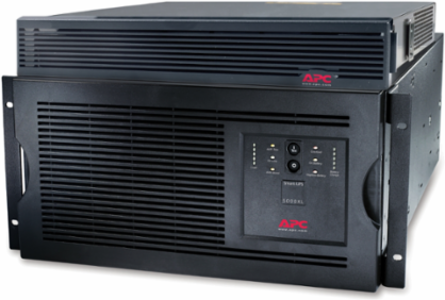

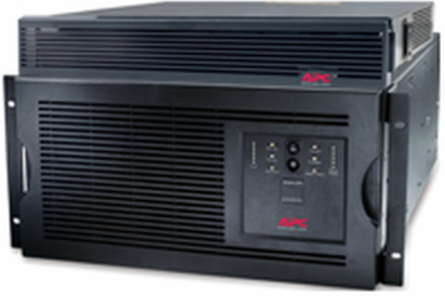

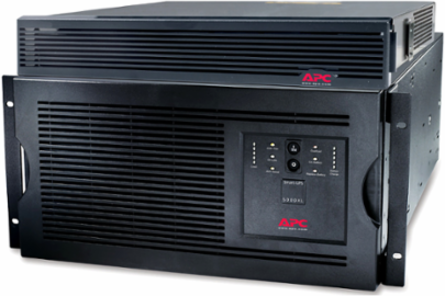

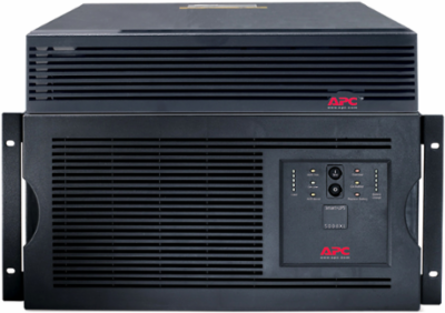

APC SUA5000R5TXFMR Smart-UPS 5000VA Rack Mount Transformer, 208V Input, 120/208V Output, 320.66 lb
- MPN: SUA5000R5TXFMR
- UPC: 731304733003
- PPN: APC-SUA5000R5TXFMR
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 5000VA Rack Mount Transformer, 208V Input, 120/208V Output, 320.66 lb
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 5000 VA (4000 W)
- Output Voltage
- 120 V, 208 V
- Output Frequency
- 47-53 Hz (50 Hz sync), 57-63 Hz (60 Hz sync)
- Topology
- Line Interactive
- Typical Recharge Time
- 3 h
- Rack Height
- 7U
- Width
- 19.02 in (483 mm)
- Weight
- 320.66 lb (145.45 kg)

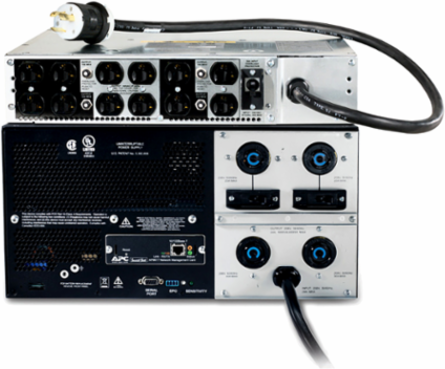

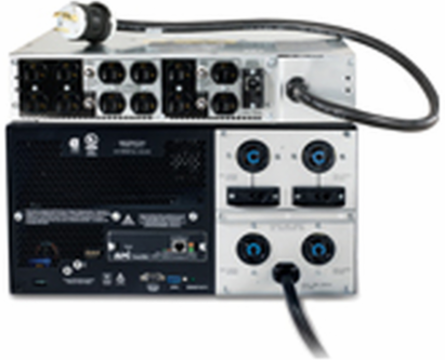

- Output Connections
- 12 NEMA 5-20R, 2 NEMA L6-20R, 1 NEMA L6-30R
- Efficiency at Full Load
- 95 %
- Transfer Time
- 2 ms typical
- Heat Dissipation
- 1708 Btu/h
- Storage Altitude
- 0 to 50,000 ft
- Ambient Temperature Storage
- 5 to 113 °F (-15 to 45 °C)
- Mount Position
- front
- Color
- Black
- RoHS
- Compliant with Exemptions
- Mercury Free
- Yes
Input Voltage208 V
Input Frequency50/60 Hz +/- 5 Hz auto-sensing
Waveform TypeSine wave
Surge Energy Rating1020 J
Battery TypeLead-Acid battery
Height12.24 in (311 mm)
Depth25.00 in (635 mm)
Input Connection TypeNEMA L6-30P
Cord Length8 ft (2.44 m)
Harmonic Distortion< 5 % at full load
Acoustic Level53 dBA
Operating Altitude0 to 10,000 ft
Ambient Temperature Operating32 to 104 °F (0 to 40 °C)
Relative Humidity0 to 95 %
Product Orientationlower
Country of OriginIndia
CSA ApprovalCSA
California Proposition 65 ComplianceProp 65 Warning - contains lead compounds
