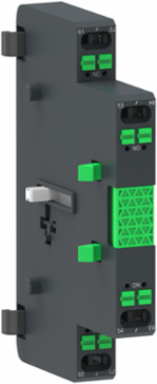

Schneider Electric LAG8N113 TeSys G Auxiliary Contact Block 1NO+1NC, IP20, -25 to 60 C
- MPN: LAG8N113
- PPN: SCH-LAG8N113
CAD
$58.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, Indonesia, United States
Depth84.8 mm
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current1 mA
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CB Scheme, CCC, cULus, CE, UKCA
- Connections - Terminals
- screw clamp terminals 0.75-2.5 mm²solid stranded without cable end, screw clamp terminals 0.75-2.5 mm²flexible with cable end
- Permissible Short-time Rating
- 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LAG8N
- Mechanical Durability
- 8 Mcycles
- Pole Contact Composition
- 1 NO + 1 NC
- Product Or Component Type
- auxiliary contact block
- Protective Treatment
- TH
- Range Of Product
- TeSys G
- Specific Use
- push-in terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- X Specific Use
- push-in terminals
- Height Nominal
- 55.8 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 59.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ui] Rated Insulation Voltage600 V IEC 60947-5-1, 600 V CSA, 600 V UL
Non-overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Insulation Resistance> 10 MOhm> 10 MOhm
Mounting Locationside
Product AvailabilityStock - Normally stocked in distribution facility
Protection TypegG fuse 10 A
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Pole Contact Comp1 NO + 1 NC
Pep CodeENVPEP2105013EN
Width Nominal15.4 mm
[Ue] Rated Operational Voltage600 V AC 25...400 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI2105013
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2105013EN
General Attributes
- Product Or Component Type
- auxiliary contact block
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
