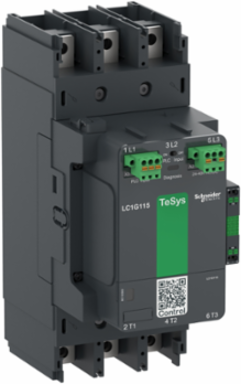

Schneider Electric LC1G185EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 185A, 3 pole/NO, 48-130VAC/DC coil

MPN: LC1G185EHEA
PPN: SCH-LC1G185EHEA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2243.77/ EA

Qty:

Loading add to cart quantity...

Description

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 185A, 3 pole/NO, 48-130VAC/DC coil

Specifications

Physical Attributes

Color: dark grey

Conformance Attributes

Product Certifications: CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Maximum Operating Rate: 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4

Ie Rated Operational Current: 305 A (at <40 °C) at <= 1000 V AC-1, 185 A (at <60 °C) at <= 440 V AC-3

Ue Rated Operational Voltage: <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Maximum Motor Phase Current: 185 A

Ui Rated Insulation Voltage: 1000 V

Maximum Horse Power Rating50 hp at 200/208 V 60 Hz, 60 hp at 230/240 V 60 Hz, 125 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz

Icw Rated Short Time Withstand Current1.5 kA - 10 s, 0.92 kA - 30 s, 0.74 kA - 1 min, 0.5 kA - 3 min, 0.4 kA - 10 min

Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC

Irms Rated Making Capacity2310 A at 440 V

Rated Breaking Capacity1610 A at 440 V

Uimp Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 200 A aM at <= 440 V for motor, 160 A aM at <= 690 V for motor, 315 A gG at <= 690 V, 300 A UL Type J at <= 600 V

Electrical Durability: 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V

Motor Power Kw: 90 kW at 400 V AC 50/60 Hz (AC-3), 90 kW at 415 V AC 50/60 Hz (AC-3), 110 kW at 440 V AC 50/60 Hz (AC-3), 110 kW at 500 V AC 50/60 Hz (AC-3), 110 kW at 690 V AC 50/60 Hz (AC-3), 75 kW at 1000 V AC 50/60 Hz (AC-3), 90 kW at 400 V AC 50/60 Hz (AC-4), 90 kW at 415 V AC 50/60 Hz (AC-4), 110 kW at 500 V AC 50/60 Hz (AC-4), 110 kW at 690 V AC 50/60 Hz (AC-4), 75 kW at 1000 V AC 50/60 Hz (AC-4), 55 kW at 230 V AC 50/60 Hz (AC-3e), 90 kW at 400 V AC 50/60 Hz (AC-3e), 90 kW at 415 V AC 50/60 Hz (AC-3e), 110 kW at 440 V AC 50/60 Hz (AC-3e), 110 kW at 500 V AC 50/60 Hz (AC-3e), 110 kW at 690 V AC 50/60 Hz (AC-3e), 75 kW at 1000 V AC 50/60 Hz (AC-3e), 55 kW at 230 V AC 50/60 Hz (AC-3), 55 kW at 230 V AC 50/60 Hz (AC-4), 100 kW at 440 V AC 50/60 Hz (AC-4)

Power Dissipation Per Pole: 20 W AC-1 - Ith 305 A, 6 W AC-3 - Ith 185 A

Utilisation Category: AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5

Icw Rated Short Time Withstand Current: 1.5 kA - 10 s, 0.92 kA - 30 s, 0.74 kA - 1 min, 0.5 kA - 3 min, 0.4 kA - 10 min

Carbon Footprint Of The Distribution Phase A4: 1.488708644272303, 1 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A3: 28 kg CO2 eq., 28.48303383269646

Local Data Status: Publishable

Global Commercial Status: Commercialised

Stocking Flag: N

Device Type: LV equipment - LV contactor

Traceability: Yes

Average Life Duration: 20 year(s)

Legacy Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2105013

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2121

China Rohs In Scope: No

Without Single Use Plastic: Yes

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Coil Technology: built-in bidirectional peak limiting

Connection Pitch: 35 mm

Halogen Free Status: Halogen free plastic parts product

Hold In Power Consumption In W: 5.0-5.0 W

Inrush Power In W: 190 W

Mounting Support: plate

Overvoltage Category: III

Poles Description: 3P

Product Or Component Type: contactor

Range: TeSys

Returnability: Yes

Sustainable Packaging: Yes

Total Lifecycle Carbon Footprint: 767 kg CO2 eq.

Ith Conventional Free Air Thermal Current: 305 A (at 40 °C)

Warranty In Months: 18

Inf Motor Phase Current: 185 A

Pep Code: ENVPEP2105013EN

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional Unit Quantity: 1

Product Weight In G2: 5114.7

Energy Consumption On Product Lifetime In Kwh: 832.2

Energy Model Installation A5 2: Electricity Mix; Production mix; Low voltage; CN

Energy Model End Of Life C1 C4 2: Electricity Mix; Production mix; Low voltage; CN

Offer Owner Code: 190788

Width Nominal: 108 mm

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Contactor Applicationpower switching, motor control

Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Operating Time40...70 ms closing, 15...50 ms opening

Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1

Connections Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end

Ie Rated Operational Current305 A (at <40 °C) at <= 1000 V AC-1, 185 A (at <60 °C) at <= 440 V AC-3

Carbon Footprint Of The End Of Life Phase C1 To C410.90227689560956, 11 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6726 kg CO2 eq., 726.4649999999999

Local Publishable Date2025-12-16

Return IndicatorY

Stock Policy2

ServiceabilityNo

Field Service DivisionPPIBS

Weee ScopeIn

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Average Impedance0.00017 Ohm

Compatibility CodeLC1G

Device Short NameLC1G

Hold In Power Consumption In Va8.9-8.9 VA

Inrush Power In Va260-260 VA

Mechanical Durability8 Mcycles

Number Of Modules Per Plc Per Pc1

Pole Contact Composition3 NO

Product AvailabilityStock - Normally stocked in distribution facility

Protective TreatmentTH

Range Of ProductTeSys Giga

Software Versionv5.9.4

Tightening Torque18 N.m

Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rated Thermal Current Ith305 A

Control Circuit Voltage48...130 V

Rated Thermal Current Hv305 A

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.

Functional Unit UnitUnit

Reference Lifetime In Y220

Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN

Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; CN

Recyclability Potential In 255

Height Nominal255 mm

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc

Halogene Performance: Halogen free plastic parts product

Mercury Free: Yes

Ambient Air Temperature For Operation: -25-60 °C

Circularity Profile: ENVEOLI2105013

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106

Take BackNej

Recycled Metal Content At Cr Level0 %

Carbon Footprint767.3390193725783

Ambient Air Temperature For Storage-60-80 °C

Environmental DisclosureENVPEP2105013EN

Halogen Content PerformanceHalogen free plastic parts product

Packaging Without Single Use PlasticYes

Pep CodeENVPEP2105013EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys Giga

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Specifications

Country of Origin: United States

Depth193 mm
