Schneider Electric GVAD0110 Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NO,side,for GV2/GV3(except GV3ME)
Schneider Electric GVAD0110 Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NO,side,for GV2/GV3(except GV3ME)
- MPN: GVAD0110
- PPN: SCH-GVAD0110
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$87.88/ EA
Description

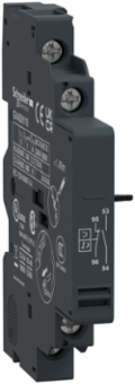

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NO instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UKCA
Environmental Characteristicnormal environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2207006
Complementary
- Minimum Switching Current
- 5 mA
- [Ith] Conventional Free Air Thermal Current
- 6 A || 2.5 A for fault signalling
- Protection Type
- GB2CB... circuit breaker || gG fuse 10 A
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-1 || 300 V UL 508 || 300 V CSA C22.2 No 14
- Tightening Torque
- 1.4 N.m screw clamp terminals
- Mechanical Durability
- 100000 cycles

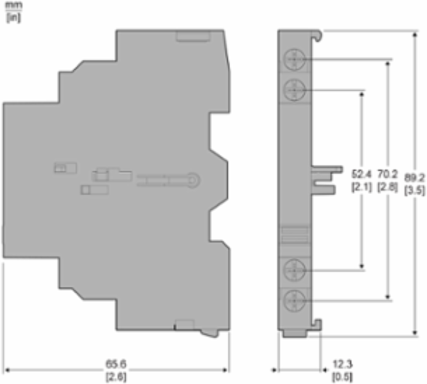

- Width
- 9.3 mm
- Rated Operational Power In W
- 120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles || 15 W 48 V DC-13 1000 cycles || 24 W 24 V DC-13 1000 cycles || 9 W 60 V DC-13 1000 cycles
Height89 mm
[Ue] Rated Operational Voltage48...690 V AC || 24...240 V DC
Net Weight0.055 kg
Minimum Switching Voltage17 V
Rated Operational Power In Va300 VA 48-48 V AC-15 100000 cycles || 414 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles || 36 VA 24-24 V AC-14 1000 cycles || 48 VA 48-48 V AC-14 1000 cycles || 72 VA 110-127 V AC-14 1000 cycles
Colourdark grey
Depth66 mm
Specifications
- Product Or Component Type
- auxiliary contact block
- Mounting Location
- left side
- Product Compatibility
- GV2ME || GV2L || GV3P || GV2P || GV3L || GV2LE || GV2RT
- Device Short Name
- GVAD
RangeTeSys || TeSys Deca
Pole Contact Composition1 NO + 1 NC
Auxiliary Contacts Operationfault signal 1 NC
