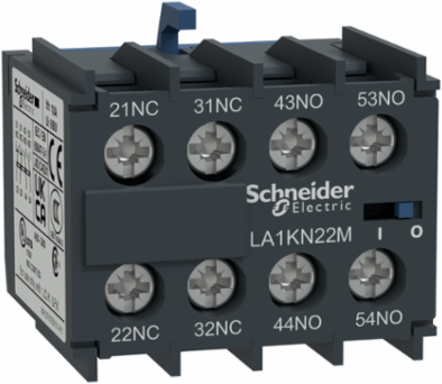

Schneider Electric LA1KN22M TeSys K Auxiliary Contact Block 2NO+2NC, 10A 690V, Front Mounting
- MPN: LA1KN22M
- PPN: SCH-LA1KN22M
CAD
$29.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K (3P + 1NO contact models except LP4K, LP5K) with screw clamp terminals. It provides 2NO+2NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Marking on terminals conforms to EN 50012. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom, Indonesia
Depth35 mm
Complementary Attributes
- Irms Rated Making Capacity
- 110 A at <= 690 V AC conforming to IEC 60947
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 1.3 N.m Philips No 2, 1.3 N.m pozidriv No 2
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0058845, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0043312, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.1606
- Local Publishable Date
- 2026-07-16
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LA1
- Environmental Characteristic
- normal environment
- Mounting Location
- front
- Pole Contact Composition
- 2 NO + 2 NC
- Product Name
- TeSys K
- Protective Treatment
- TC IEC 60068
- Range Of Product
- TeSys K
- Shielding Continuity Terminal
- without
- Specific Use
- conforming to EN 50012
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pole Contact Comp
- 2 NO + 2 NC
- Connections Terminals 55 Connections Terminals
- screw clamp terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and/or NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 43
- Width Nominal
- 38 mm
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1524
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 15.02
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 3.4464
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 269.98
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -1.993
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -1.1598
- Materials For Recycling (Kg) Installation [A5]
- 0.006
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 16.438
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 3.4467
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 1.4177
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.1974
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 606.91
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.4131
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1.3647
- Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]
- -0.0434
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, CCC, UL, CSA, CE, UKCA
Connections - Terminalsscrew clamp terminals 2 0.75-4 mm²flexible without cable endscrew clamp terminals 2 1.5-4 mm²rigidscrew clamp terminals 1 0.34-1.5 mm²flexible with cable endscrew clamp terminals 1 0.75-4 mm²flexible without cable endscrew clamp terminals 1 1.5-4 mm²rigid, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.11352
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.92084
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Use Carbon Footprint3.1606
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG at <= 690 V conforming to IEC 60947
Device Short NameLA1
Insulation Resistance> 10 MOhm> 10 MOhm
Non Overlap Distance0.5 mm
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeauxiliary contact block
RangeTeSys
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
X Specific Useconforming to EN 50012
Pep CodeENVPEP2106022EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal30 mm
[Ith] Conventional Free Air Thermal Current10 A (at 50 °C)
Permissible Short-time Rating80 A 1 s60 A 500 ms110 A 100 ms
Package Weight(Lbs)40.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]3.1606
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]606.91
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-1.6105
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]22.321
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]20.864
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]81.925
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1974
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]663.02
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-1.6359
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.111
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]14.076
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]3.4464
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0324
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.111
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -50-80 °C, -50-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4.205175700000001
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2106022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-25-50 °C, -25-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2106022EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Product Compatibility3P contactor
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- auxiliary contact block
