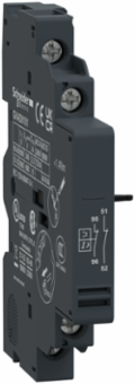

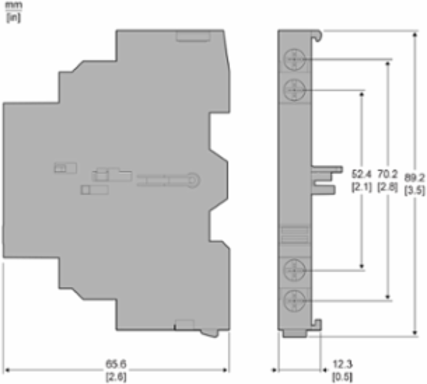

Schneider Electric GVAD0101 TeSys Deca Add-On Contact Block 1NC Fault + 1NC, 66mm Depth, 0.055 kg
- MPN: GVAD0101
- PPN: SCH-GVAD0101
CAD
$87.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom
Depth66 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Operational Power In Va
- 300 VA 48-48 V AC-15 100000 cycles414 VA 690-690 V AC-15 100000 cycles500 VA 110-127 V AC-15 100000 cycles, 500 VA 500-500 V AC-15 100000 cycles650 VA 440-440 V AC-15 100000 cycles720 VA 230-240 V AC-15 100000 cycles850 VA 380-415 V AC-15 100000 cycles36 VA 24-24 V AC-14 1000 cycles, 48 VA 48-48 V AC-14 1000 cycles, 72 VA 110-127 V AC-14 1000 cycles
- Minimum Switching Current
- 5 mA
Rated Operational Power In W120 W 240 V DC-13 100000 cycles140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles180 W 60 V DC-13 100000 cycles240 W 48 V DC-13 100000 cycles15 W 48 V DC-13 1000 cycles, 24 W 24 V DC-13 1000 cycles, 9 W 60 V DC-13 1000 cycles
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Carbon Footprint Of The Distribution Phase [A4]
- 0.015848607259613637, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004164087447539518, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.0025283999999999997
- Local Publishable Date
- 2025-08-13
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GVAD
- Mechanical Durability
- 100000 cycles
- Pole Contact Composition
- 2 NC
- Product Or Component Type
- auxiliary contact block
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Auxiliary Contacts Operation 2
- fault signal
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 42
- Width Nominal
- 9.3 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A2.5 A for fault signalling
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
[Ui] Rated Insulation Voltage690 V IEC 60947-1300 V UL 508, 300 V CSA C22.2 No 14
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.11818372820475406
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.32905745328286123
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1826
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGVAD
Environmental Characteristicnormal environment
Mounting Locationleft side
Product AvailabilityStock - Normally stocked in distribution facility
Protection TypeGB2CB... circuit breakergG fuse 10 A
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Pole Contact Comp2 NC
Pep CodeENVPEP2207006EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal89 mm
Certificate AgencyUKCA
[Ue] Rated Operational Voltage48...690 V AC24...240 V DC
Package Weight(Lbs)43.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Product CompatibilityGV3L, GV2P, GV2LE, GV2RT, GV2L, GV2ME, GV3P
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint0.4697822761947684
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
