Schneider Electric

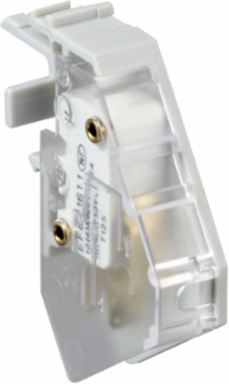

Schneider Electric GS1AM1 TeSys GS Auxiliary Contact Block, 1 C/O, Early Break, Front Mounting

  • MPN: GS1AM1
  • PPN: SCH-GS1AM1

CAD

$44.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys GS instantaneous auxiliary contact block for 3-pole and 4-pole 50-400A IEC fuse switch-disconnectors GS1FD, GS1GD, GS1JD, GS1KD, GS1KKD, GS1LLD, GS1LD, GS1ND, GS1QQD. It provides 1C/O early break contacts rated up to 12A/24V DC-13 and 4A/230V AC-15, for I/O position signaling. Front mounting and connection by Faston terminals. IEC certified, it conforms to RoHS/REACh regulation.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance

Complementary Attributes

Line Rated Current50 A, 63 A, 100 A, 125 A, 160 A, 200 A, 250 A, 315 A, 400 A

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Fuse TypeNFC, DIN, BS
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact ApplicationO and I position signalling
Contacts Type And Composition1 C/O
Electrical Durability30000 cycles AC-15
Mechanical Durability1 Mcycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ie] Rated Operational Current5 A 127 V AC-154 A 230 V AC-153 A 400/415 V AC-152 A 440 V AC-15, 12 A 24 V DC-13, 2 A 48 V DC-130.6 A 110 V DC-130.4 A 220 V DC-13
Local Publishable Date2026-06-27
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeauxiliary early break and signalling contact
Contact Operationearly-break
Device Short NameGS1AM
Energy Efficiency OptimizedFalse
Mounting Locationfront face
Product Or Component Typeauxiliary contact
ReturnabilityNo
Type Of Operating Handledirect right side
[Ith] Conventional Free Air Thermal Current16 A (at 40 °C)
Package Weight(Lbs)24.0 g
Warranty (In Months)18

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes

General Attributes

Product Or Component Typeauxiliary contact
Range Of ProductTeSys

ETIM

ETIM 8EC000041
ETIM 9EC000041

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
TeSys GS Auxiliary Contact Block, 1 C/O, Early Break, Front Mounting
