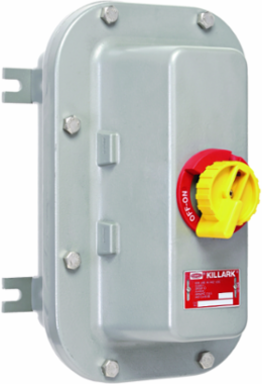

Killark B7NFD2 Aluminum Compact Non-Fused Disconnect Switch Enclosure 60/100A, NEMA 3, 4, 4X, 7, 9
Killark B7NFD2 Aluminum Compact Non-Fused Disconnect Switch Enclosure 60/100A, NEMA 3, 4, 4X, 7, 9
- MPN: B7NFD2
- UPC: 783936009797
- PPN: HBL-B7NFD2
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2025.86/ EA
Description
B7NFD Series - Aluminum Feed-Thru Compact Non-Fused Disconnect Switch Enclosure - 60/100A
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Few cover bolts reduces installation and maintenance time.
- Gasketed flange with O-ring located inside bolt circule to seal out moisture.
- Rotary handle style operating mechanism with lockout provision as standard.
- Removable ductile mounting lugs adjust to irregular mounting surfaces.
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available.
- ABB UL98 certified switch supplied for 600VAC, 30, 60 & 100 Amp unit available.
- ABB UL508 certified switch supplied for 600VAC, 16, 32, 40, 63 & 80 Amp unit available.
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content).
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Specifications
Specifications
- Enclosure
- Bolted
- NEMA Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- Special Features
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
- Country of Origin
- US
- Each - Width
- 10.000 in
- Height
- 13.06 in
- Primary Voltage
- 600 VAC
- Width
- 8.125 in
- Enclosure Type
- Bolted
- Mounting Type
- Wall
- Number Of Poles
- 3
- Type
- Non-Fused Disconnect
- Description - Invoice
- NONFUSED DISC ENCLOSURE ONLY 60/100A
- Harmonization Code
- 7616999999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D251
- Gross Weight with Packaging
- 23.2
- Series
- B7NFD Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936009797
MountingWall
Number of Poles3
ARRA CompliantContact Manufacturer
Depth7.8125
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Operating Temperature Celcius Max40 Degree
Weight23.2 lb.
ApplicationThe PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where frequent washdowns, heavy rain, or water spray routinely occurs.
Frequency Rating60 Hz
Nema Rating3, 4, 4X, 7(B, C, D), 9(E, F, G)
Number Of Wires4
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
