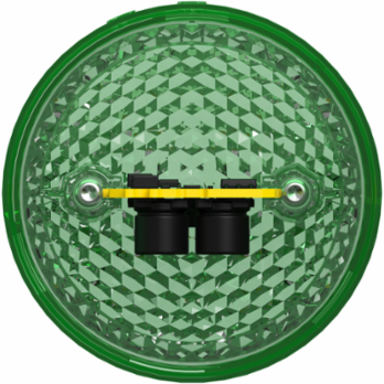

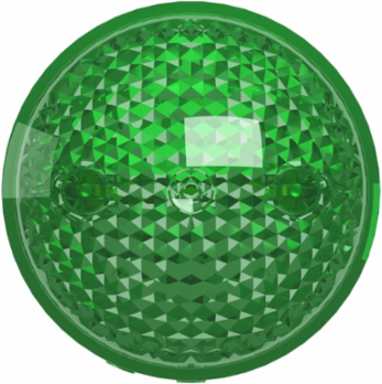

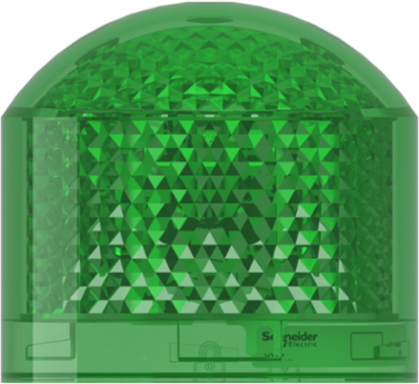

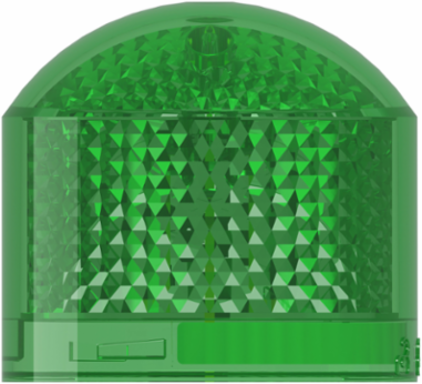

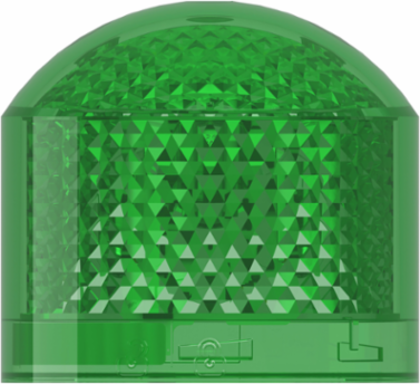

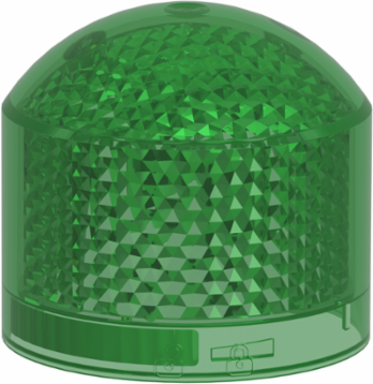

Schneider Electric XVB7L63 Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Flashing, Colored Lens
Schneider Electric XVB7L63 Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Flashing, Colored Lens
- MPN: XVB7L63
- PPN: SCH-XVB7L63
- UNSPSC: 32151503
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$243.58/ EA
Description
Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Flashing, Colored Lens
Features
- Modular concept provides flexibility in the selection
- Diamond-cut lens for even light and higher brightness
- Elevated modern design
- Rationalized construction that reduces Stock-Keeping Units by 3X
- Energy-efficient LED to maximize brightness while minimizing energy consumption
- Configurable color combinations for wide applications
Specifications
Conformance Attributes
- Product Certifications
- cULus, CCC, RCM, UKCA, CE
StandardsUL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Current Consumption
- 180 mA 24 V AC, 250 mA 24 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.09019369433860897
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 0.9889988542101489
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Device Short Name
- XVB7
- Inrush Current
- 1 A
- Material
- PC (polycarbonate)
- Mounting Position
- upright/inverted
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Service Life In Hours
- 50000 h
- Signalling Type
- flashing
- Total Lifecycle Carbon Footprint
- 65 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 50 V
- Medium Desc
- Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Flashing, Colored Lens
- Stocking Flag
- N
- Pep Code
- ENVPEP2501028EN
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Carbon Footprint Of The Distribution Phase A40.03290387027852485, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0005043411599917425, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B664 kg CO2 eq., 63.686001744411605
Local Publishable Date2026-01-12
Pre Comm Date2025-02-06
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501028EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Compositionbeacon lens
Electrical Shock Protection Classclass II
Light SourceLED, green
Mounting Diameter70 mm
Package Weight Lbs95.000 g
Product Or Component Typelight module
ReturnabilityYes
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation
Ue Rated Operational Voltage224 V AC/DC
Uimp Rated Impulse Withstand Voltage20.5 kV
Country Of Origin 6US
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis product is a highly customizable visual and audible signal indicator that can be precisely controlled through an IO-Link which is typically mounted on a tower used to alert people of a specific status or condition from a distance often by flashing a bright light and can indicate things like machine operation, warnings, hazards particularly in industrial applications with highly visible warning or status indicator with 360-degree visibility in life span of 10 years.This product will be active for 73% of the time with a power consumption of 3.168W and adhering to standards IEC 60947-5-1.
Energy Model Manufacturing A1 A3 2Electricity Mix; High voltage; 2020; Germany, DE
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Global, GLO
Flashing Frequency2 Hz
Ue Rated Operational Voltage524 V AC/DC
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 64.79860250439889
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2501028EN
- Nema Degree Of Protection
- Type 4/4X/12/13 indoor use only
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2501028EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-60 °C
Circularity ProfileENVEOLI2501028EN
IP Degree Of ProtectionIP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-04-03
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Indonesia, Philippines
