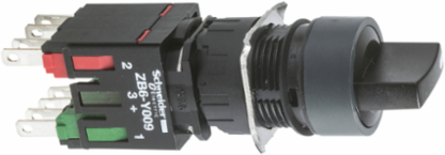

Schneider Electric XB6AD235B Selector Switch Harmony XB6, 16mm, Black Round, 3 Positions, 1NO + 1NC
- MPN: XB6AD235B
- PPN: SCH-XB6AD235B
CAD
$44.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric XB6AD235B Selector Switch is an essential component in automation and control applications, designed to enhance operational flexibility. Featuring a sleek black round design with a compact 16mm diameter, this switch operates with three positions and includes both one normally open (NO) and one normally closed (NC) contact, allowing for versatile control options. This selector switch is engineered for reliability and ease of use, making it a practical choice for panel builders and system integrators seeking efficient solutions in their projects.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, 1.5 A 240 V AC-15, 0.1 A 250 V DC-13, 0.22 A 125 V DC-13 IEC 60947-5-1
- Electrical Reliability
- bb = 10exp(-8) 5 V 1 mA 90% confidence IEC 60947-5-4
- Operating Position
- any position
- Contact Operation
- slow-break
- Height
- 18 mm (0.71 in)
- Depth
- 68 mm (2.68 in)
- Terminals Description Iso N01
- (21-22)NC, (13-14)NO
- Net Weight
- 0.024 kg
- Bezel Material
- plastic
- Type Of Operator
- stay put
- Panel Thickness
- 1 to 6 mm (0.03 to 0.23 in)
- IP Degree of Protection
- IP65 IEC 60529
- Standards
- UL 508, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C8201-5-1, JIS C852, JIS C8201-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz IEC 60068-2-6, 5 gn 2-500 Hz IEC 60068-2-6
- Ambient Air Temperature for Operation
- -25 to 70 b0C
- Protective Treatment
- TC
- Device Short Name
- XB6
- Reach Free Of Svhc
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status
- Green Premium product
- Circularity Profile
- ENVEOLI1710010EN
- Country of Origin
- Mexico
Electrical Durability1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V IEC 60947-5-1 appendix C
Short-Circuit Protection6 A cartridge fuse gG
Contacts Type And Composition2 NO
Mounting Diameter16 mm (0.63 in)
Width18 mm (0.71 in)
Operator Position Information3 positions 600
Connections - TerminalsFaston connectors 2.8 x 0.5 mm
Contacts Materialsilver alloy (Ag/Ni)
Shape Of Signaling Unit Headsquare
Operator Profileblack standard handle
Electrical Shock Protection Classclass II IEC 61140
NEMA Degree of ProtectionNEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Product CertificationsGOST, UL, CCC, CSA
Shock Resistance30 gn 18 ms, 50 gn 11 ms half sine wave IEC 60068-2-27
Ambient Air Temperature for Storage-40 to 70 b0C
Range Of ProductHarmony XB6
Positive Openingwith IEC 60947-5-1 appendix K
Toxic Heavy Metal FreeYes
Rohs Exemption InformationYes
China Rohs RegulationX
Environmental DisclosureENVPEP1710010EN
Warranty18 months
