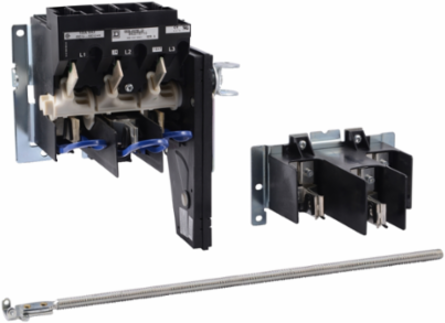

Square D 9422TEN10C Flange Mounted Non-Fusible Disconnect Switch, 100A, 600V, Variable Depth 6.63-18 Inch
Square D 9422TEN10C Flange Mounted Non-Fusible Disconnect Switch, 100A, 600V, Variable Depth 6.63-18 Inch
- MPN: 9422TEN10C
- UPC: 785901551447
- PPN: SCH-9422TEN10C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1135.54/ EA
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 10 to 0 AWG with copper wire and 6 to 0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Specifications
Complementary Attributes
- Maximum Horse Power Rating
- 25 hp 200 V AC, 30 hp 230 V AC, 60 hp 460 V AC, 75 hp 575 V AC, 20 hp 250 V DC
Line Rated Current100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Recognized, CSA
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Mounting
- flange cable variable depth
- Provided Equipment
- ordered separately
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Offer Owner Code
- 190788
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Disconnector Device Typenon-fusible disconnect switch
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component TypeDisconnect Switch
Range Of Product9422T
Sustainable PackagingNo
Warranty In Months18
Pn1
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
ETIM
- ETIM 8
- EC001040
ETIM 9EC001040
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Mexico, United States
