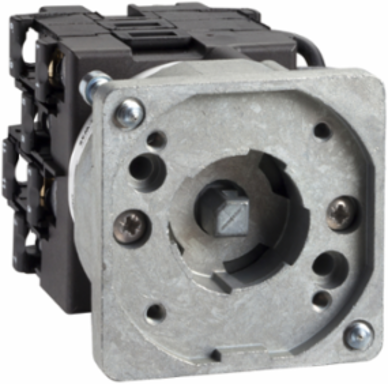

Harmony K 22mm Metal Stepping Switch Body, 1 Pole, 4 Steps, 12A
Schneider Electric

Schneider Electric K1D004NX Harmony K 22mm Metal Stepping Switch Body, 1 Pole, 4 Steps, 12A

  • MPN: K1D004NX
  • PPN: SCH-K1D004NX

CAD

$86.78

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony K1D004NX is a body for stepping switch with 1 pole, 45° switching angle, 12 A. It is part of the range Harmony K diameter 16-22mm rotary cam switches.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony K
Sub-Assembly Composition
contact blocks + fixing plate
[Ith] Conventional Free Air Thermal Current
12 A
Component Name
K1
Switching Positions
right: 0° - 45° - 90° - 135°
Poles Description
1P
Fixing ModeØ 22 mm hole
Product Or Component Typecam switch body
Cam Switch Functionstepping switch
Mounting Locationfront
Bezel Materialmetal
Off Positionwithout Off position

Complementary

Short-Circuit Protection
16 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current
10 A
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function || 6 kV IEC 947-1
Electrical Connection
captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
Maximum Operating Rate
2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
[Ui] Rated Insulation Voltage
690 V 3)IEC 60947-1
Contact Operation
slow-break
Rated Operational Power In W
10500 W AC-21, 500 - 660 V 3 phases IEC 947-3 || 1100 W AC-3, 230 V 3 phases IEC 947-3 || 1500 W AC-23A, 230 V 3 phases IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phases IEC 947-3 || 1500 W AC-3, 500 V 3 phases IEC 947-3 || 1500 W AC-3, 690 V 3 phases IEC 947-3 || 2200 W AC-23A, 400 V 3 phases IEC 947-3 || 2200 W AC-23A, 500 V 3 phases IEC 947-3 || 2200 W AC-23A, 690 V 3 phases IEC 947-3 || 4800 W AC-21, 230 V 3 phases IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phases IEC 947-3
Number Of Steps4
Net Weight0.188 kg
Switching Angle45 °
Electrical Durability1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
Short-Circuit Current10000 A
Positive Openingwith
Mechanical Durability1000000 cycles
[Ie] Rated Operational Current Ac1.8 A 690 V AC-3 3 phases IEC 947-3 || 2.8 A 500 V AC-3 3 phases IEC 947-3 || 2.8 A 690 V AC-23A 3 phases IEC 947-3 || 3.3 A 400 V AC-3 3 phases IEC 947-3 || 3.8 A 500 V AC-23A 3 phases IEC 947-3 || 4.6 A 230 V AC-3 3 phases IEC 947-3 || 4.8 A 400 V AC-23A 3 phases IEC 947-3 || 5.6 A 230 V AC-23A 3 phases IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1

Environment

Ambient Air Temperature For Operation
-25-55 °C
Shock Resistance
30 gn IEC 68-2-27
Standards
IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
Protective Treatment
TC
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phases 2 || UL 240 V 1 hp 3 phases || UL 240 V 0.33 hp 1 phase 2
Ambient Air Temperature For Storage-40-70 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP071103EN_V1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
