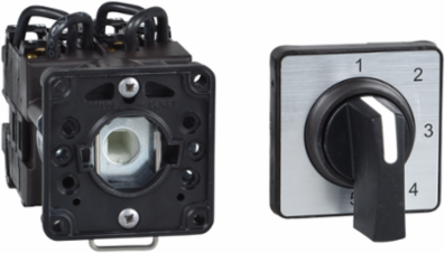

Schneider Electric K1E005NCH Harmony K Cam Stepping Switch, Ø 22mm, 5 Steps, 12A, IP65, 45x45mm
- MPN: K1E005NCH
- PPN: SCH-K1E005NCH
CAD
$77.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Harmony K Cam Stepping Switch by Schneider Electric is a robust and versatile component designed for automation and control applications. Featuring a compact diameter of 22mm and accommodating up to 5 steps, this switch provides seamless operation and reliable performance for various control tasks. Its durable construction offers an impressive IP65 rating, ensuring superior protection against dust and moisture, making it suitable for use in demanding environments. With a current rating of 12A, this stepping switch is not just efficient but also capable of handling significant electrical loads, making it an ideal choice for industrial and commercial applications where precision and durability are key.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 1.8 A 690 V AC-3 3 phases, 2.8 A 500 V AC-3 3 phases, 2.8 A 690 V AC-23A 3 phases, 3.3 A 400 V AC-3 3 phases, 3.8 A 500 V AC-23A 3 phases, 4.6 A 230 V AC-3 3 phases, 4.8 A 400 V AC-23A 3 phases, 5.6 A 230 V AC-23A 3 phases, 1 A 500 V AC-15, 2 A 400 V AC-15, 3 A 230 V AC-15 IEC 947-3 / IEC 947-5-1
- Conventional Free Air Thermal Current
- 12 A
- Short-Circuit Current
- 10,000 A
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Maximum Operating Rate
- 2.5 Cyc/Min AC-21, AC-23, AC-3; 8.333 Cyc/Min AC-15
- Mechanical Durability
- 1,000,000 cycles
- Positive Opening
- Yes
- Diameter
- 22 mm
- CAD Width
- 45 mm
- CAD Depth
- 69 mm
- Electrical Connection
- Captive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Vibration Resistance
- 5 gn 10-150 Hz IEC 68-2-6
- Standards
- IEC 60947-3, IEC 60947-5-1, CENELEC EN 50013
- Protective Treatment
- TC
- Mounting Location
- Front
- Type Of Operator
- Black handle 35 mm
- Switching Angle
- 45 °
Rated Operational Power10500 W AC-21, 1100 W AC-3, 1500 W AC-23A
Conventional Enclosed Thermal Current10 A
Short-Circuit Protection16 A cartridge fuse gG
Rated Impulse Withstand Voltage4 kV isolating function, 6 kV IEC 947-1
Electrical Durability1,000,000 cycles AC-15, AC-21; 500,000 cycles AC-23, AC-3
Contact OperationSlow-break
Number of Steps5
Head Dimensions45 x 45 mm with front plate
CAD Height50 mm
Net Weight0.18 kg
Ambient Air Temperature for Operation-25 to 55 °C
Shock Resistance30 gn IEC 68-2-27
Overvoltage CategoryClass II IEC 536, Class II NF C 20-030
Product CertificationsCSA, UL
SustainabilityGreen Premium, REACh free of SVHC, EU RoHS compliant, Toxic heavy metal free, Mercury free
Poles Description1P
Switching PositionsRight: 0° - 45° - 90° - 135° - 180°
