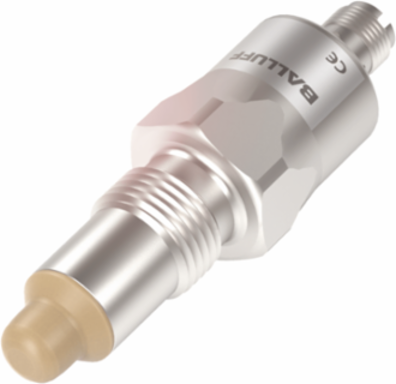

Balluff BCS S04K501-NSCFNG-S04G-T51 Capacitive Level Sensor, 30 x 96 mm, IP68, PEEK Surface
- MPN: BCS S04K501-NSCFNG-S04G-T51
- PPN: BAL-BCS011P
CAD
$628.77
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 5 Hz |
|---|---|
| Operating Voltage | 12-30 VDC |
| Sensitivity | Teachable depending on media |
| Dimension | 30 x 96 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Material Sensing Surface | PEEK |
| IP Rating | IP68, IP69K |
| Series | S04 |
| Switching Output | NPN Normally open (NO) |
|---|---|
| Pressure Rating | 16 bar |
| Ambient Temperature | -10 to 85 °C |
| Thread Size | G 1/2 in. |
| Installation | Non-flush |
| Housing Material | Stainless steel (1.4404) |
| Function | Smart Level 100 |
| Approvals | EHEDG certified, FDA compliant, CE, WEEE, cULus LISTED, IO-Link |
