Balluff

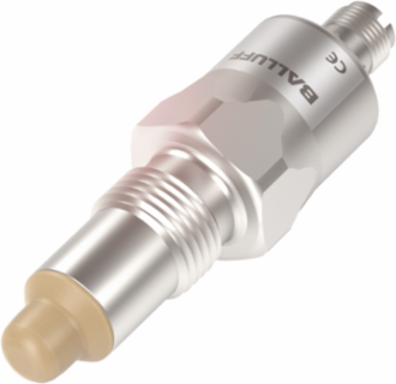

Balluff BCS S04K501-PICFNG-S04G-T50 Capacitive Level Sensor, Ø 30 x 96 mm, Stainless Steel, IP68

Capacitive Level Sensor, Ø 30 x 96 mm, Stainless Steel, IP68
  • MPN: BCS S04K501-PICFNG-S04G-T50
  • PPN: BAL-BCS011E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$468.61/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 30 x 96 mm
Thread (A)
G 1/2"
Connection
Connector, M12x1-Male, 4-pin
Switching frequency
5 Hz
Sensitivity
teachable depending on media
Additional features
Electrically conductive media, Foam and residue compensation, CIP/SIP capable
Material sensing surface
PEEK
Operating voltage Ub
18-30 VDC
IP rating
IP68
SeriesS04
Installationnon-flush
Switching outputPNP Normally open (NO)
InterfaceIO-Link 1.1
FunctionSmart Level 100
Housing materialStainless steel (1.4404)
Ambient temperature-40-85 °C
Approval/ConformityCE, FDA compliant, EHEDG certified, IO-Link, WEEE, cULus LISTED
