Balluff

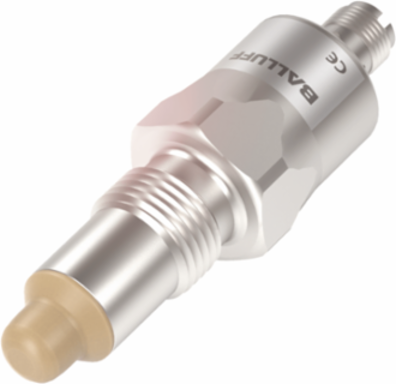

Balluff BCS S04K501-POCFNG-S04G-T50 Capacitive Level Sensor, Ø 30 x 96 mm, IP68, Stainless Steel

Capacitive Level Sensor, Ø 30 x 96 mm, IP68, Stainless Steel
  • MPN: BCS S04K501-POCFNG-S04G-T50
  • PPN: BAL-BCS011H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$610.46/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 30 x 96 mm
Thread (A)
G 1/2"
Connection
Connector, M12x1-Male, 4-pin
Switching frequency
5 Hz
Function
Smart Level 100
Housing material
Stainless steel (1.4404)
Ambient temperature
-40-85 °C
Approval/Conformity
EHEDG certified, FDA compliant, CE, WEEE, IO-Link, cULus LISTED
SeriesS04
Installationnon-flush
Switching outputPNP Normally closed (NC)
Sensitivityteachable depending on media
Additional featuresElectrically conductive media, Foam and residue compensation, CIP/SIP capable
Material sensing surfacePEEK
Operating voltage Ub12-30 VDC
IP ratingIP68
