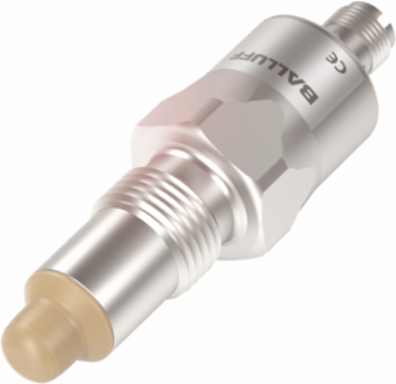

Balluff BCS S04K501-PSCFNG-S04G-T50 Capacitive Level Sensor 30 x 96 mm, IP68, Stainless Steel
- MPN: BCS S04K501-PSCFNG-S04G-T50
- PPN: BAL-BCS011F
CAD
$455.39
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Output | PNP Normally open (NO) |
|---|---|
| Operating Voltage | 12-30 VDC |
| Ambient Temperature Range | -40 to 85 °C |
| Dimension | 30 x 96 mm |
| Connection Type | Connector, M12x1-Male, 4-pin |
| Material | Stainless steel (1.4404), PEEK sensing surface |
| Additional Features | Electrically conductive media, Foam and residue compensation, CIP/SIP capable |
| Switching Frequency | 5 Hz |
|---|---|
| Pressure Rating Max | 16 bar |
| IP Rating | IP68, IP69K at connector exit |
| Thread Size | G 1/2" |
| Installation | Non-flush |
| Function Indicator | Yes |
| Safety Certification | EHEDG certified, FDA compliant, CE, WEEE, IO-Link, cULus LISTED |
