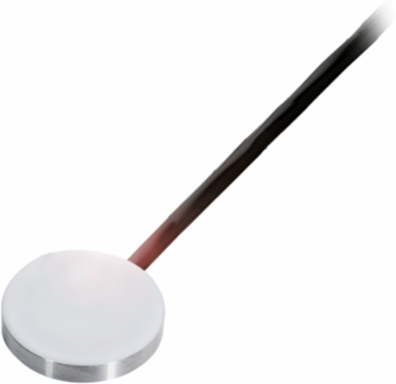

Balluff BCS D22T403-PSM60C-EP02 Capacitive Sensor 22 x 4 mm, Stainless Steel, IP64
- MPN: BCS D22T403-PSM60C-EP02
- PPN: BAL-BCS003H
CAD
$413.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 12-30 VDC |
|---|---|
| Measuring Range | 5.4-6.6 mm |
| Ambient Temperature | -30-70 C |
| Connection | Cable, 2.00 m, PUR |
| Housing Material | Stainless Steel (1.4301) |
| Installation | For flush mounting |
| Series | D22 |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Size | 22 x 4 mm |
| Material Sensing Surface | PTFE |
| IP Rating | IP64 |
| Approval/Conformity | CE, cULus, WEEE |
